Yup. I really meant lots of little parts
1 Like
US $3.32 incl. shipping
Yuck, I wouln’t touch a PCB with that.
The man on the picture soldering the PCB is dressed like a carpenter.
3 Likes

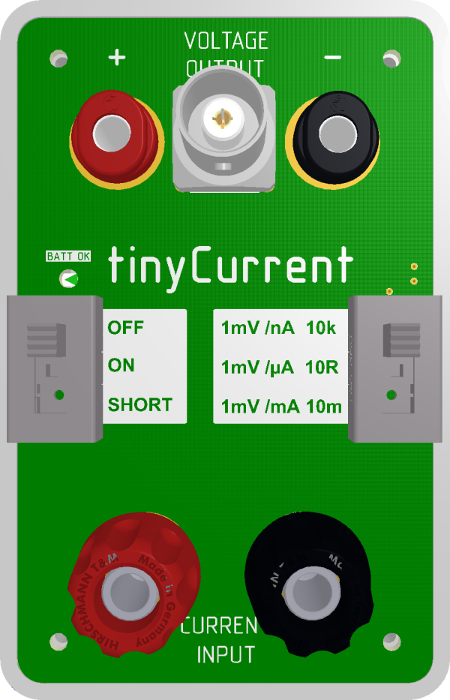

Nice, another ‘xCurrent’ device.
Like:
- BNC out.
- Insulated terminals.
- Increased dynamic range (204%) when external power source is connected.
Note: similar increase of dynamic range (but to 180%) is also possible with uCurrent Gold. - White case (but that’s just my personal opinion).
Like less/not:
- Increasing of dynamic range requires external power supply.
Update: according to its designer dynamic range can also be increased via a jumper. - Looks: less posh, just green PCB and no gold.
From the picture: type of screws (they look sunken head types that are not sunken).
.
Like the original uCurrent Gold, it lacks an auto-ranging option.
A difficulty with xCurrent devices that support auto-ranging is that a scope is unaware of range switches so scope traces do not correctly represent the measured values (when range switches have occurred) and you will not be able to determine from a trace if and where range switches have occurred.
1 Like
1 Like
Designer of the device here.
Thx for wrapping up!
Just some comments:
Yes, the screws are not that nice. I’m thinking of getting non sunken ones, unfortunately these came with the enclosure.
You double the dynamic range even w/o external power supply. You can change the ratio of the voltage divider via a jumper wire on J6.
1 Like
Ok.
The product page (only) shows: “@5.5V VDD (from external power source)”.
I assume that adjusting the ratio via the jumper also impacts (lowers) resolution?
Suggestion: a nice and simple option would be to include an extra battery holder (on the PCB) for a second 3V button cel to increase supply voltage to 6V and have the increased dynamic range standard by (optionally) placing a second battery.
