RF Radiation diagramm

End Devices (Nodes) Generic Node
1

Hello,

Have you the RF radiation diagramm of the node?

best regards,

Mathieu

2

Hi @mathieu_pouillot .

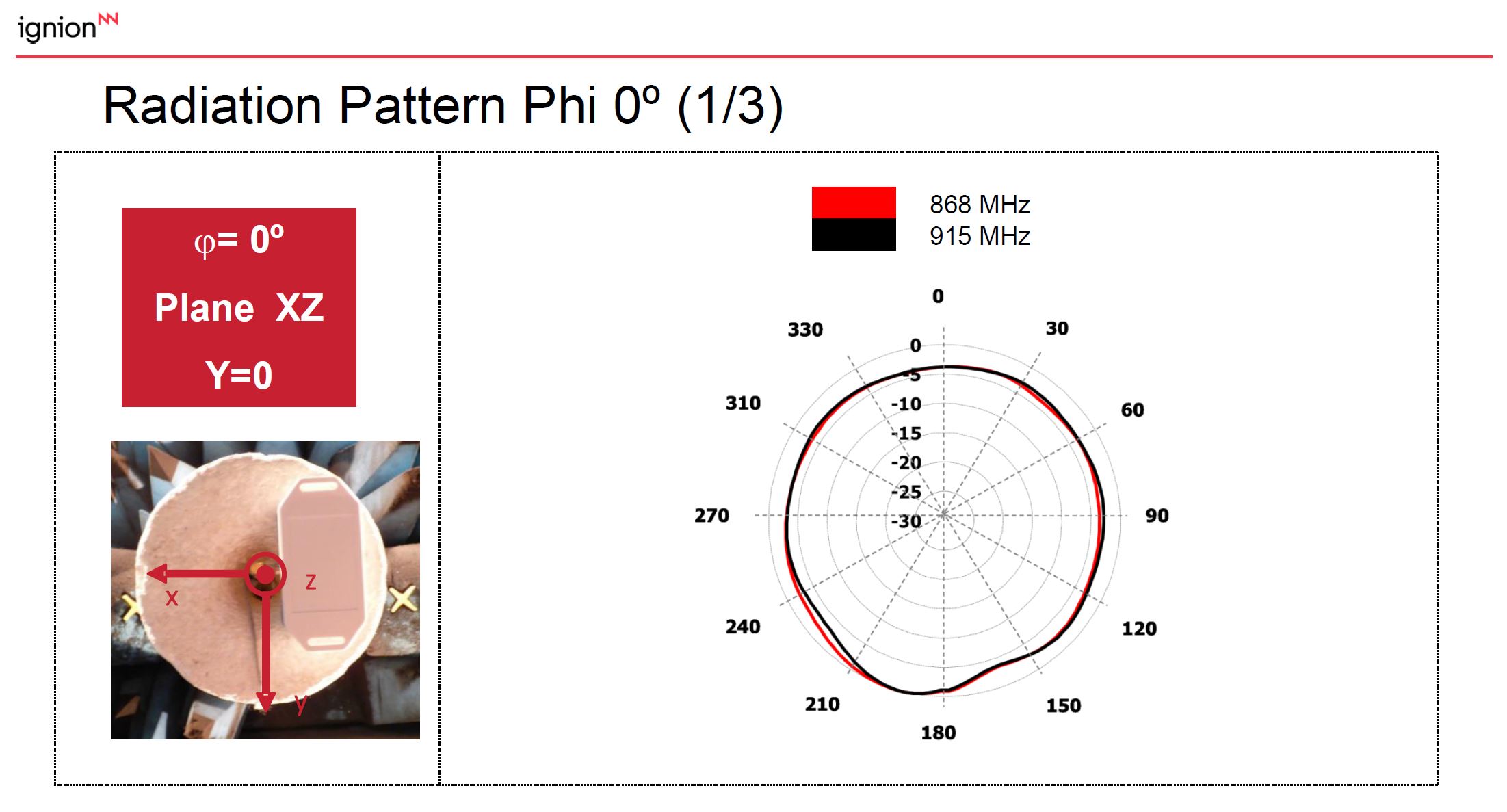

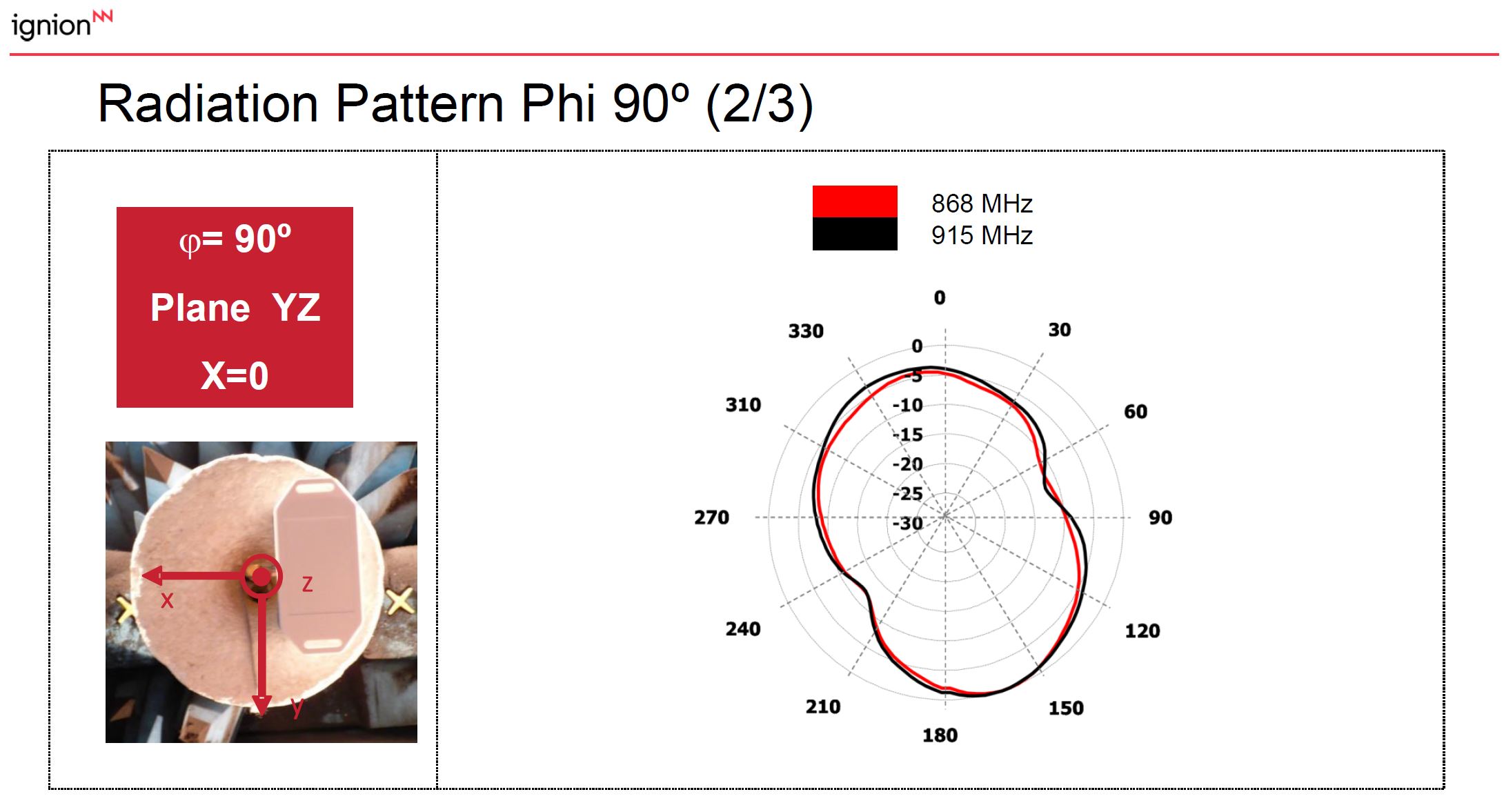

Looks like this topic aged well. Sorry for that. Here are the radiation pattern diagrams.
I hope it helps.

pattern-1

pattern-2

pattern-3

1 Like
3

A post was split to a new topic: Antenna theory
