Overview of custom shields and breakout board designs

[arjanvanb (Arjan)]

A little experiment. Meanwhile many have posted their designs, but they are hard to find? I know there are many, many more. This is a wiki post; anyone can edit, so don’t reply but add/update/remove yours:

• ESP8266 WeMos Shield for microchip LORAWAN RN2483 or RN2903 by @Charles

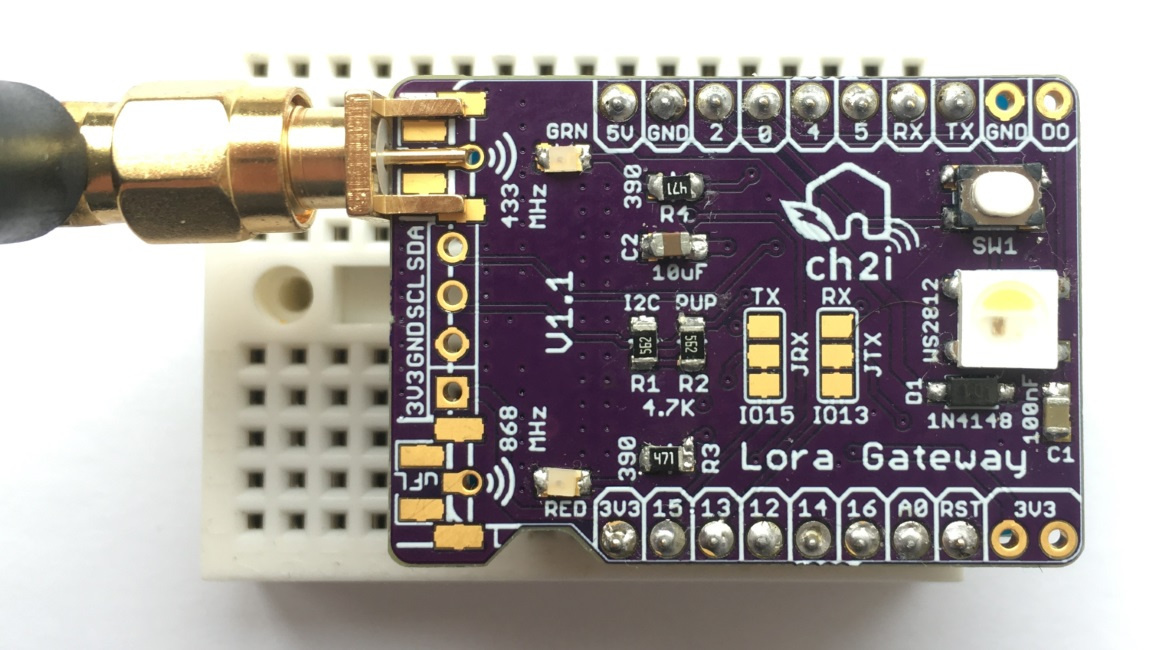

• NodeMCU ESP8266 RF Gateway and Display Board by @Charles

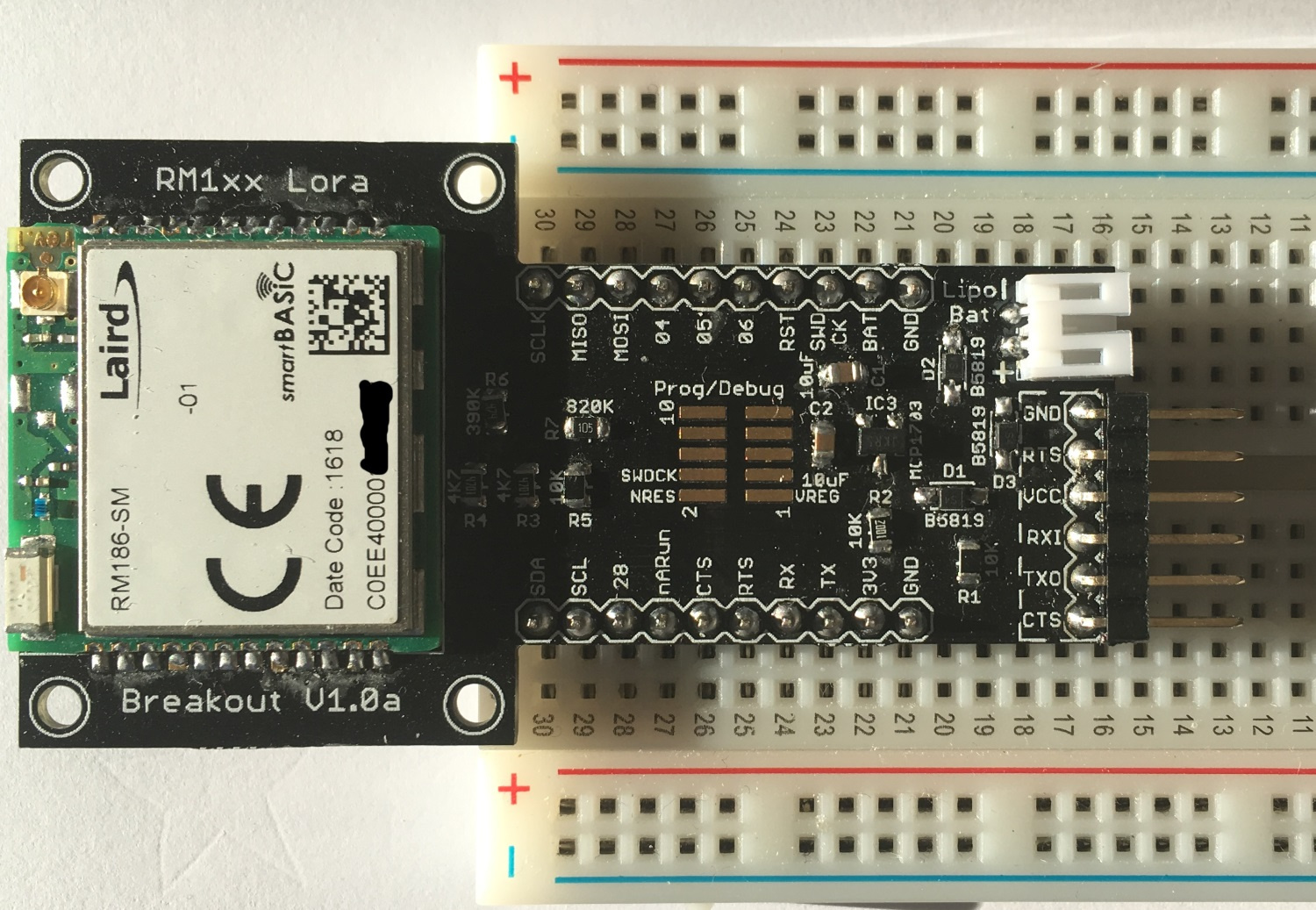

• Laird LoRa/Bluetooth Low Energy Module breakout for RM1xx modules by @Charles


• Raspberry PI Zero W shield (forum discussion) by @ccadic

• NodeMcu RFM95w TTN node with Battery charger (forum discussion) by @ccadic

• RFM95 breakout by @ccadic

• STM32 / RFM95 board TTN-Labs article by @tomtor

• LoraWAN-Stick, combining Atmega32u4, MTK3339 GPS module, and RN2903 by @brandonbyrne

• RN2483 breakout with ICSP/PicKit connector by @jmarcelino

• RN2483 breakout by @DrAzzy

• ProMini RFM95 board (forum discussion) by @douglarue

• Small board with Arduino+RFM95+MOSFET, fits on breadboard by @Oliv

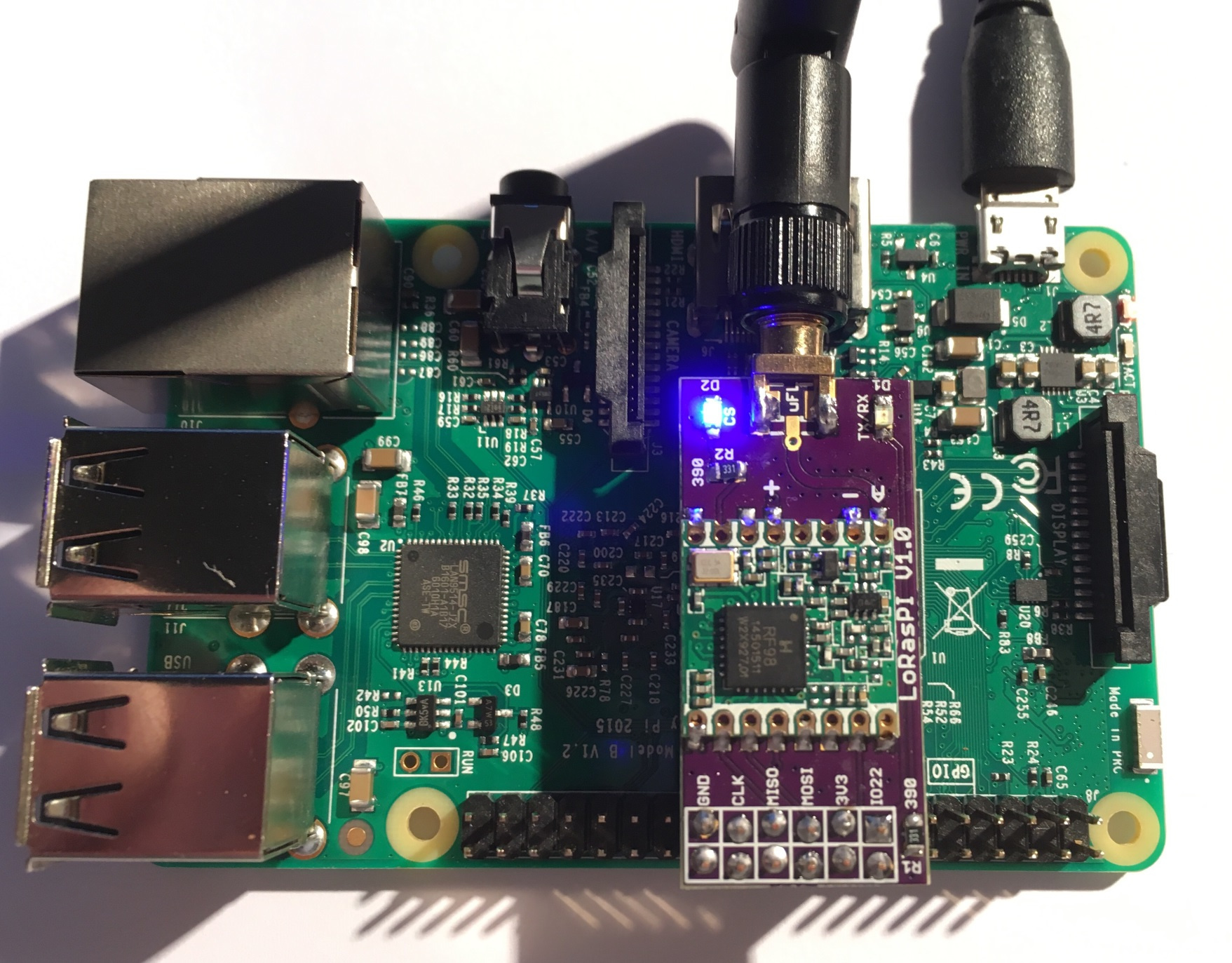

• LoRasPI Lora RFM95 tiny shield for Raspberry PI by @Charles

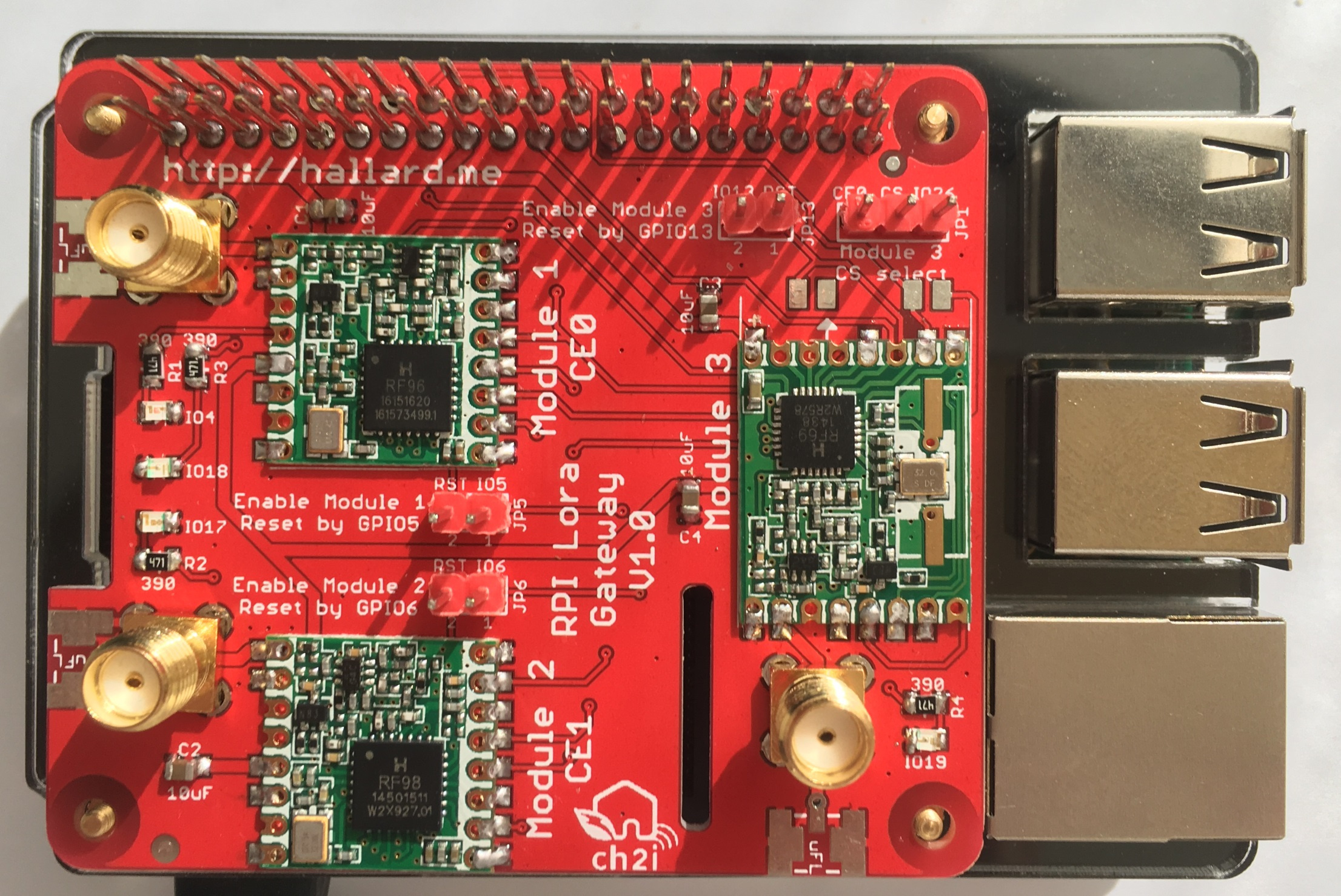

• Raspberry PI Lora Gateway/Node for RFM92/95/96/98/69HCW Modules by @Charles

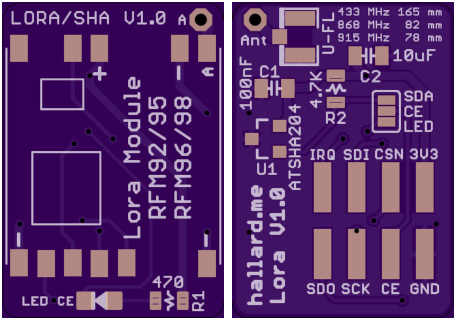

• Lora RFM92/95/96/98 Breakout Board NRF24 pinout by @Charles


[Charles]

@arjanvanb
I added some links and pictures, feel free to remove if you think it’s not appropriate

[Nordrunner (Jens)]

Hello

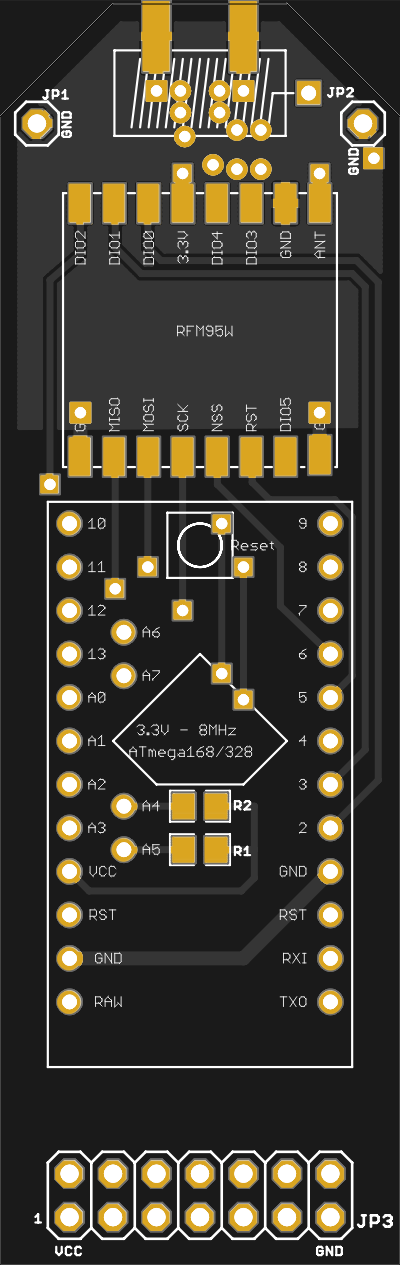

Another PCB for Arduino pro mini and RF95 from the user @Wijnand.

Shared at pcbs.io

Greets
