New LoRa chips: SX1262, SX1261and SX1268

End Devices (Nodes) Hardware
1

Semtech just announced new LoRa chips at CES 2018

PRG-SEMTECH-Next-gen-LoRa-press-2

SX1262 (+22dBm), SX1261 (+15dBm) and SX1268 (+22dBm, China frequency bands)

LoRa Technology New Features:

  • 50% less power in receive mode
  • 20% more extended range (increase in link budget)
  • +22 dBm transmit power
  • A 45% reduction in size: 4mm by 4mm
  • Global continuous frequency coverage: 150-960MHz
  • Simplified user interface with implementation of commands
  • New spreading factor of SF5 to support dense networks
  • Protocol compatible with existing deployed LoRaWAN networks
10 Likes
2

If I understand correctly, new chipset has LoRaWAN stack integrated?

3

No I don’t think so … ‘next generation LoRa’… not LoRaWAN
the succesors to the sx1276/78/79 ?

1 Like
4

What does “Simplified user interface with implementation of commands” mean then?

5

There’s something called “protocol engine” on the block diagrams for these chips. No datasheet available yet. We’ll see…

1 Like
6

I’ll guess it is SX1280/81 like interface

1 Like
7


1 Like
8

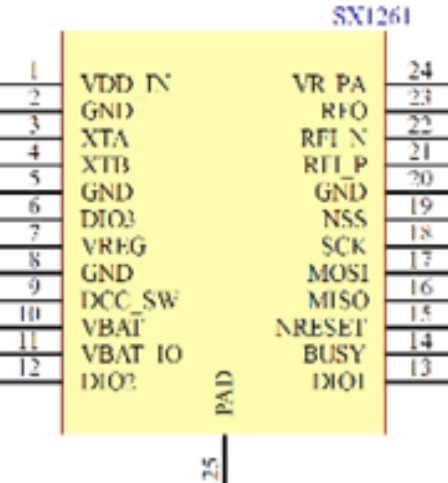

SPI and no UART …
