I’m trying to get a Heltec ESP32 LoRa V2 node running with TTN. So far it all looked promising but for some reason the board won’t process or receive a Join Accept and therefore can not establish a valid connection to TTN.

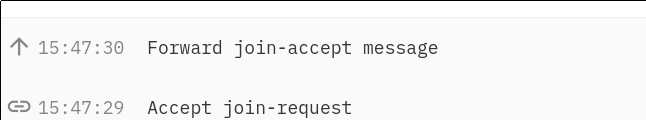

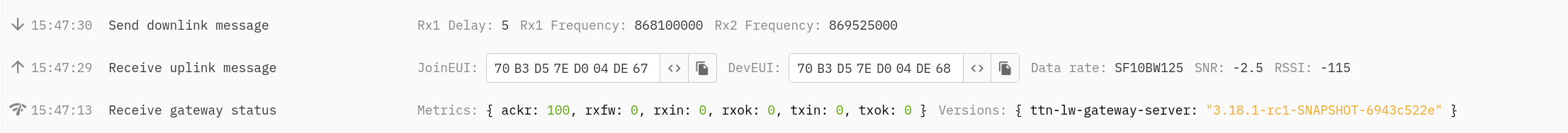

I’m trying to get the LMIC-node example to run (tried both the pure example and several modified versions) on the board and so far the board correctly starts up and sends a Join request to the gateway. From the TTN Console I can see that the request is received and that a Join Accept response gets issued. From the gateway logs I would think that the gateway receives the accept correctly.
I use the latest LMIC MCCI library.
Having a look at the serial console it seems the board is sending the Join message but it does not receive the Accept message and therefore gets stuck in a loop re-sending the Join request to the gateway. Interestingly it seems not all of the Join request messages appear in the TTN console.
I’m connected to a TTN Outdoor Gateway.
Here are the infos:
Gateway log in console:
Device Log in console:
Gateway Log:
##### END #####
# GPS coordinates: latitude 49.97971, longitude 7.92296, altitude 92 m
# Valid time reference (age: 1 sec)
### [GPS] ###
# SX1301 time (PPS): 3854267887
### [JIT] ###
# BEACON rejected: 0
# BEACON sent so far: 4861
# BEACON queued: 4864
# TX rejected (too early): 0.00% (req:191, rej:0)
# TX rejected (too late): 0.00% (req:191, rej:0)
# TX rejected (collision beacon): 2.09% (req:191, rej:4)
# TX rejected (collision packet): 0.00% (req:191, rej:0)
# TX errors: 0
# RF packets sent to concentrator: 0 (0 bytes)
# PULL_RESP(onse) datagrams received: 0 (0 bytes)
# PULL_DATA sent: 3 (100.00% acknowledged)
### [DOWNSTREAM] ###
# PUSH_DATA acknowledged: 100.00%
# PUSH_DATA datagrams sent: 1 (154 bytes)
# RF packets forwarded: 0 (0 bytes)
# CRC_OK: 0.00%, CRC_FAIL: 100.00%, NO_CRC: 0.00%
# RF packets received by concentrator: 1
### [UPSTREAM] ###
##### 2022-03-16 14:48:13 GMT #####
INFO: Enabling GPS mode for concentrator's counter.
INFO: host/sx1301 time offset=(1647438238s:742218µs) - drift=-548µs
INFO: Disabling GPS mode for concentrator's counter...
INFO: [down] PULL_ACK received in 41 ms
INFO: [down] PULL_ACK received in 33 ms
INFO: [down] PULL_ACK received in 33 ms
INFO: [up] PUSH_ACK received in 34 ms
JSON up: {"stat":{"time":"2022-03-16 14:47:43 GMT","lati":49.97969,"long":7.92295,"alti":92,"rxnb":1,"rxok":1,"rxfw":1,"ackr":100.0,"dwnb":1,"txnb":2}}
##### END #####
# GPS coordinates: latitude 49.97969, longitude 7.92295, altitude 92 m
# Valid time reference (age: 1 sec)
### [GPS] ###
# SX1301 time (PPS): 3824267890
### [JIT] ###
# BEACON rejected: 0
# BEACON sent so far: 4861
# BEACON queued: 4864
# TX rejected (too early): 0.00% (req:191, rej:0)
# TX rejected (too late): 0.00% (req:191, rej:0)
# TX rejected (collision beacon): 2.09% (req:191, rej:4)
# TX rejected (collision packet): 0.00% (req:191, rej:0)
# TX errors: 0
# RF packets sent to concentrator: 2 (33 bytes)
# PULL_RESP(onse) datagrams received: 1 (211 bytes)
# PULL_DATA sent: 3 (100.00% acknowledged)
### [DOWNSTREAM] ###
# PUSH_DATA acknowledged: 100.00%
# PUSH_DATA datagrams sent: 2 (453 bytes)
# RF packets forwarded: 1 (23 bytes)
# CRC_OK: 100.00%, CRC_FAIL: 0.00%, NO_CRC: 0.00%
# RF packets received by concentrator: 1
### [UPSTREAM] ###
##### 2022-03-16 14:47:43 GMT #####
INFO: [down] PULL_ACK received in 32 ms
INFO: tx_start_delay=1493 (1493.562500) - (1497, bw_delay=1.500000, notch_delay=1.937500)
JSON down: {"txpk":{"imme":false,"tmst":3815239836,"freq":868.1,"rfch":0,"powe":14,"modu":"LORA","datr":"SF10BW125","codr":"4/5","ipol":true,"size":33,"ncrc":true,"data":"IL7QydHq5Ck/G2fqiDLK4t6N0b5wtoqXcsyQ+t89kj1M"}}
INFO: [down] PULL_RESP received - token[0:191] :)
INFO: [up] PUSH_ACK received in 35 ms
JSON up: {"rxpk":[{"tmst":3810239836,"time":"2022-03-16T14:47:28.971944Z","tmms":1331477248971,"chan":5,"rfch":1,"freq":868.100000,"stat":1,"modu":"LORA","datr":"SF10BW125","codr":"4/5","lsnr":-2.5,"lsnr_min":-4.5,"lsnr_max":-1.2,"rssi":-115,"size":23,"da
ta":"AGfeBNB+1bNwaN4E0H7Vs3A5cnSloVo="}]}
INFO: Received pkt from mote: D004DE67 (fcnt=46037)
=> 00 00 80 BC 5C 4F 5F A4 00 00 00 00 00 00 00 00 00
INFO: Beacon queued (count_us=4193267892, freq_hz=869525000, size=17):
INFO: tx_start_delay=1493 (1493.562500) - (1497, bw_delay=1.500000, notch_delay=1.937500)
INFO: Beacon dequeued (count_us=3809267937)
INFO: [down] PULL_ACK received in 35 ms
INFO: [down] PULL_ACK received in 32 ms
INFO: [up] PUSH_ACK received in 34 ms
JSON up: {"stat":{"time":"2022-03-16 14:47:13 GMT","lati":49.97968,"long":7.92294,"alti":92,"rxnb":0,"rxok":0,"rxfw":0,"ackr":100.0,"dwnb":0,"txnb":0}}
Serial Log from node:
Running in debugging mode
39605: Event: EV_JOINING
39630: Event: EV_TXSTART
442929: Event: EV_JOIN_TXCOMPLETE
475615: Event: EV_TXSTART
857513: Event: EV_JOIN_TXCOMPLETE
where the EV_TXSTART and EV_JOIN_TXCOMPLETE events will go on forever.
I believe this issue might be the same I have, unfortunately without a solution. I already tried the same things as the issue’s author.
Maybe anyone can help?
cheers
