Always wrong payload in TTN

[bdepauw (Bart De Pauw)]

Hello All,

Someone a idea what can be going on ? It’s driving me nuts …
I sent ( as test ) always the same 2 bytes ( values 21 and 80 , HEX : 15 and 50 )

PROBLEM : These are always different in TTN payload , really random !!

Tryed already differente code ( sketch ) all the same ramdomness as payloadresult

Using a TTGO ESP LoRa v1.0 as Gateway and as Node. So a 1 channel gateway setup ( don’t need more for the moment and my node doesn’t reach any other GW in SF7 )
Node forced to always use the singel same freq.
Using ABP ( as otaa isn’t supported on a 1ch non-bidirectional GW)
Al this works nice :
counter increments with 1 in TTN ( no miss hits )
“frequency”: 868.1,
“modulation”: “LORA”,
“coding_rate”: “4/5”,
“spreading_factor”: 7,
“bandwidth”: 125,
update interval 30s ( maybe violating fair use policy, will check ones my payload is correct )
“rssi”: arround -63,
“snr”: arround 9,

Somewhere a bug in the gateway ?

[BoRRoZ]

did you try with different values… for example 22 and 81 ? can you check ?

[bdepauw (Bart De Pauw)]

Thanks for the reply [BoRRoZ] . Why would you expect 22 and 81 to be correctly received ?
Evens if they would, I don’t want to exclude 21 and 80 to be sent. ( 21 = degrees in celcius at home , 80 humidity )

[BoRRoZ]

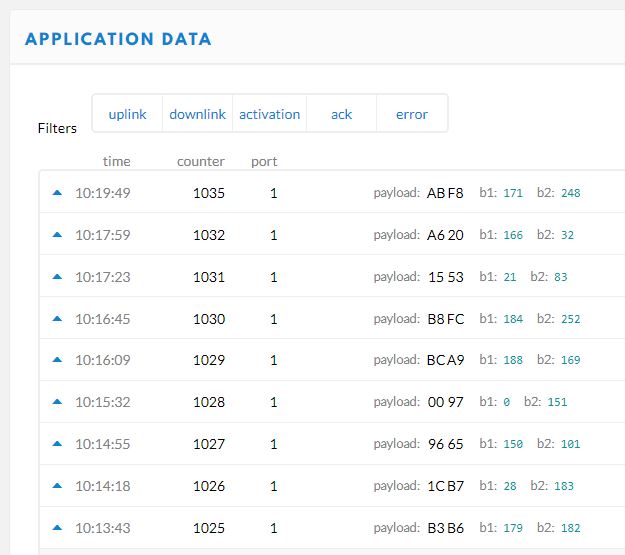

can you show a screenshot of your application in your TTN console when receiving your data.

Decrypting messages for dummies

Sorry for the basic question but - how can i decrypt message with “Payload Functions” on console page? I mean if i send “12345” or “Hello” then paylod in Application data page shows “31 32 33 34 35” for 12345 and “48 65 6C 6C 6F” for Hello. If i enter any of those two payloads the results is in both cases empty. I’ve searched through forum but i did not find an answer. Can someone be so nice and explain me this results? Tkanks, Roberto

[kersing (Jac Kersing)]

That usually means your application skey is not set to the correct value (does not match the TTN setting). If the address and network skey do not match you will not get the data routed to the application, if the application skey match doesn’t the data can’t be decrypted correctly and you will get random data.

[bdepauw (Bart De Pauw)]

Hello Jac. Thanks for replying.
I copy/pasted them from the TTN console in lsb format.
Just verified both ( TTN and sketch ) to be sure, ones more, and they are the same :

Sketch :
static const uint8_t PROGMEM APPSKEY[16] = { 0xAF, 0x45, 0x2C, 0x52, 0xF2, 0xEF, 0x62, 0xBD, 0x9D, 0x23, 0x66, 0xDB, 0x4F, 0x1C, 0xE7, 0x53 }; // lsb

TTN:

Other ideas ?

[bdepauw (Bart De Pauw)]

Some fresh wrong payload for this code (only releated to those 2 bytes ) :

// moisture variable
int moisture = 0;
// temperature in Celcius
int tempC = 0;

// Reading temperature and humidity
// moisture = sensor.readHumidity();
moisture = 80;
// Read temperature as Celsius (the default)
// tempC = sensor.readTemperature();
tempC = 21;

void build_data() {
dataTX[0] = tempC;
dataTX[1] = moisture;
}

// Prepare upstream data transmission at the next possible time.
LMIC_setTxData2(1, dataTX, sizeof(dataTX), 0);

[kersing (Jac Kersing)]

Quote from Matthijs Kooijman, One of the (earlier) maintainers of LMIC:

Did you enter the devaddr LSB-first and the keys MSB-first?

So LSB might be the wrong format for the keys,

[bdepauw (Bart De Pauw)]

Hello Jac. Indeed !! That did the job. Thanks !
As simple as that …
So AppSKey, application session key needs to be MSB !!
( Altrough strange, as a lot of code examples show it beings LSB )

[rabeb]

hello bdepauw,
please tel me how you changed the rest of the program when you changed AppSKey from LDB to MSB
it keeps giving me errors
