The BIG and SMALL ANTENNA topic part 2

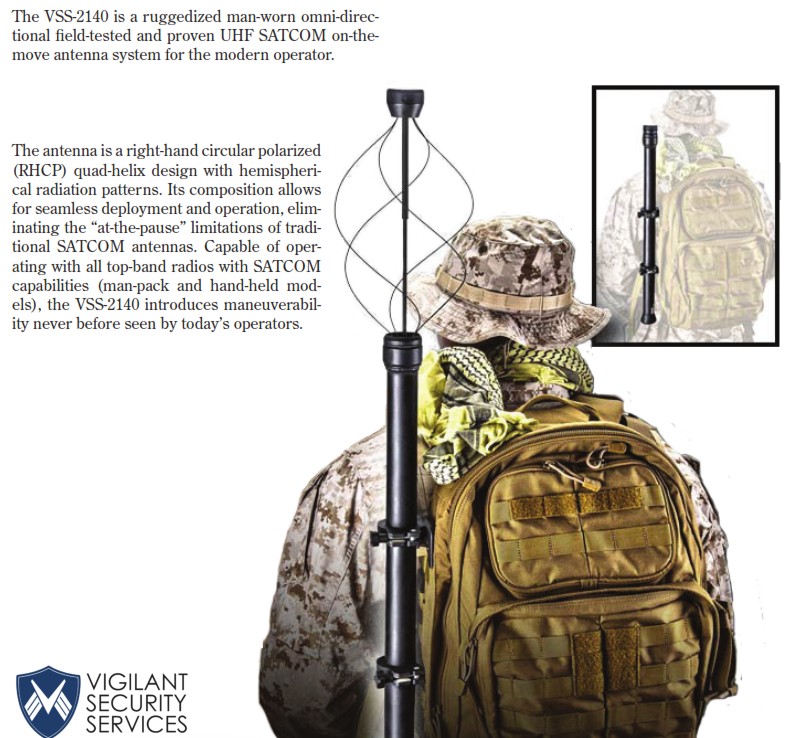

vss-2140
interesting design :sunglasses:

1 Like

(Wo)man wornā€¦Not the 1st thing that comes to mind when someone mentions wareables! :wink:

a bit older but still nice experiments :sunglasses:

1 Like

So far I have experience with the following Antennas :

  1. small SMA ( should be in reality 1.5dbi ) - Heltec and most TTGO modules are with it:
  2. SMA ( bendable )
  3. RAK 6dbi
  4. Mauser 8dbi
  5. RS Online external
  • my personal experience is that the best signal is 5 and the worst is 1 - actually I will suggest never use 1 if you not just inside a house - and directly switch to 2.

  • my general feeling is that 300m is the average coverage will all of them in a city and with 3,4,5, you can get about 4.5km.

    1. has the best look and feel.

my test has been made with ESP32 20dbm modules e.g Heltec, TTGO and Feather32u4

I will appreciate if someone can share also his finding e.g. how much coverage he has achieved and with which type of LoRa chips modules ? which antenna ?

you use these antennas indoors on a single channel gateway ? with a cable in betweenā€¦ because 300 mtrs is very bad

2 Likes

It seems there is a HUGE difference if the antenna is at a building level - e.g outside of a windows or on top of a building , outside of a window but not on top of a building - 750m , on top of a building (2 meters pole ) e.g no metal things or buildings parallel to the antenna 1.5-4.5km

Itā€™s known that modern buildings with double glass and sometimes sunlight blocking films, also can block a lot of RF signals.
I suspect your chinese ALI antenna is not tuned to the right frequency or SWR is very bad resulting in losses.

been there :sunglasses:

yes the China made stuff is tricky - most of the sellers do not know what they sell or just sell 433Mhz antenna as 868 but the links that I mentioned are for tested antennas - before finding them there was a lot trial and error to be honest :slight_smile:

The original Heltec antenna seems not really a 868 antenna. One cheap alternative you do not mention is a 20cm whip antenna, much better (with attention: the first one I bought was likely a 2.4GHz one). For completeness, you have to mention also the second antenna of your tests.
With a single channel gateway, the best I obtained was 6.2km at SF12, in semi-rural area, but only on one direction, around 3km was more normal. Gateway antenna was the home-made GPA, placed indoors under the roof of a 2 floors building; node antenna was the 20cm whip antenna. With a similar setup in a strongly shielding building I obtained something less, but with large ā€œdarkā€ areas.
Results similar but not really better using a 37cm whip antenna that I hoped more performant (there is a link somewhere in the thread).
On the other side, I found the Heltec Lora32 behaving consistenly worst than a esp8266 + Lora chip or also ESP32 + Lora chip, so I stopped using it. There is a video explaining reasons for bad performance.

the first one is good.

Range depends on both receiving and sending antennas. I have used the antenna design here with very good results, 3.7Km in urban area without Line of sight and an RFM95 module. The gateway had a home made collinear antenna with sections 5/8 - 5/8 - 1/2. I am not sure what the gain is and I donā€™t have the tools to measure it. On the same gateway antenna, I manage to get a 1.2Km link using this

@ferrero in the 12 or more months since your 868 and 915 colinear antenna designs were published Iā€™ve built a few as trials. I canā€™t achieve a VSWR below 4:1 without adding ground plane radials, whereas your modelling shows the antenna being less than 2:1 at resonance. Also the dimensions of the 915 MHz version donā€™t seem to be scaled from the 868MHz version (ie dimensions reduced by the ratio of 868/915).

The concept of a light weight element inside a radome is just what some gateways need, but canā€™t replicate your work.

Wonder if you can shed some light on the dimensions and VSWR/ groundplane.

I experimented a bit with the antennas I have (20cm whip antenna, 37cm, homemade GPA), and I found something that my limited knowledge of radio is not adequate to deal with.
If I put the GPA directly over a node, with radials that go down partially around the node, performance (RSSI) is slightly worst than when I put the antenna more elevated, with about 20cm of H-155 cable (vertical). Do you think there is interference between the node electronics and the radials?

Furthermore, I noticed a small increase of performance if I put the GPA radials on the 20cm antenna (and more if using the same H-155 extension as aboveā€¦).

I will try to confirm the experiment with another node and possibly with half-way elevation.

(gateway was at about 60m outdoors, almost line of sight but node indoors, in noisy environment)

Most antennaā€™s will not have a perfect 50 ohm match and therefor they will return a (smaller or bigger) part of the signal back. This signal will usually also travel on the outside of the feeding coax back to the node. This will make the coax (and the node) radiate and so they will become part of the antenna, disturbing your theoretical radiation pattern. (The pattern may radiate more upward or downwards, leaving less power in the desired horizontal plane)
So comparing different antennaā€™s with different coax cable lenghts is tricky.

If you want to prevent the feedline and/or node from radiating and disturbing the antenna radiation pattern you should put a ferrite clamp-on over the coax, as close as possible or at 1/2 lambda (17cm) from the feedpoint of the antenna.

Ferrite clamp-on filters are available in many sizes , so you can easy find a size that will exact fit your coax feedline while itā€™s position on the cable stays fixed.

The placement of a antenna has influence on the radiation pattern. Take a look at the simulations I made for the GPA antenna : Very simple homemade outdoor 868Mhz antenna (groundplane)

Thanks @costo, in this case I have a male to male SMA adapter in one case, and about 20cm of H-155 (with SMA connectors at both ends) in the other. Has ferrite to be isolated from the metal adapters?

Thanks @lex_ph2lb, I crossed your charts time ago (they made me put a single channel gateway just under the roof :slight_smile: ), and I also implemented the GPA following your instructions (with some deviation).
However, in this case there is not much difference in height: 20cm of coax, by the way I also compensated the height in order to have the antenna top more or less at the same height. And RSSI difference is about 5db (-55 vs -50), on 3 alternated sessions. I will have to try with a different node.

1 Like

I do not think it is nescessary to isolate the ferrite clamp electrically from the outher coax.
In most cases the use of several ferriteclamps in series will improve the RF-isolation.

Coincidentally I performed a similar exercise as jpmeijers original catalog, but for the 915MHz band. The apparent poor performance of off-the-shelf antennas caused quite a stir on LinkedIn.

Here are the version one results, with the antenna mounted on the VNA just like jpmejiers did. I believe thatā€™s a good indication of performance in most typical configurations, where you screw the antenna directly to the electronics enclosure.

00%20am

Here are the updated results with the antenna connected through 50cm of cable, mounted on some non-RF active material. I believe thatā€™s a good indication of what happens if you take the ground plane away, as would be the case when youā€™re mounting the antenna externally.

13%20am

Hmm, the previews arenā€™t very clear. Hereā€™s some links to the originals: Antennas.pdf (2.0 MB) and Antennas with 50cm cable - smaller.pdf (398.0 KB).

4 Likes

Iā€™ve been using this antenna on AU-915 with good results. Iā€™m about to start deploying a lot more gateways, and iā€™m wondering if iā€™m better off using osmethign lower gain.
