Nope. I was directing you to the TTN console where on the gateway page you can download the global configuration which contains the information you need to correctly setup the frequencies on your gateway. When I look at your screen schot I think your current setup is incorrect. The json contains the right values to use.
Looks like you have GW set for AU FSB2 (Jacâs comments wrt actual settings being possibly incorrrect) with Meter as AS923 - unlikely/wont work - they need to talk the same âlanguageâ of RF. Try going to the general settings of the GW (expand LoRaWAN settings) and select the correct AS923 version for the meter - assuming GW is capable of this (should be), such that both GW and device âmatchâ - you may need to experiment with AS923 variants dependin on your location and actual Meter configâŚthen try again.
Hi Sorry I have found it I will try set the browan gate way and revert back
{
"SX1301_conf": {
"lorawan_public": true,
"clksrc": 1,
"antenna_gain": 0,
"radio_0": {
"enable": true,
"type": "SX1257",
"freq": 917200000,
"rssi_offset": -166,
"tx_enable": true,
"tx_freq_min": 915000000,
"tx_freq_max": 928000000
},
"radio_1": {
"enable": true,
"type": "SX1257",
"freq": 917900000,
"rssi_offset": -166,
"tx_enable": false
},
"chan_multiSF_0": {
"enable": true,
"radio": 0,
"if": -400000
},
"chan_multiSF_1": {
"enable": true,
"radio": 0,
"if": -200000
},
"chan_multiSF_2": {
"enable": true,
"radio": 0,
"if": 0
},
"chan_multiSF_3": {
"enable": true,
"radio": 0,
"if": 200000
},
"chan_multiSF_4": {
"enable": true,
"radio": 1,
"if": -300000
},
"chan_multiSF_5": {
"enable": true,
"radio": 1,
"if": -100000
},
"chan_multiSF_6": {
"enable": true,
"radio": 1,
"if": 100000
},
"chan_multiSF_7": {
"enable": true,
"radio": 1,
"if": 300000
},
"chan_Lora_std": {
"enable": true,
"radio": 0,
"if": 300000,
"bandwidth": 500000,
"spread_factor": 8
},
"chan_FSK": {
"enable": false
},
"tx_lut_0": {
"pa_gain": 0,
"mix_gain": 8,
"rf_power": -6,
"dig_gain": 0
},
"tx_lut_1": {
"pa_gain": 0,
"mix_gain": 10,
"rf_power": -3,
"dig_gain": 0
},
"tx_lut_2": {
"pa_gain": 0,
"mix_gain": 12,
"rf_power": 0,
"dig_gain": 0
},
"tx_lut_3": {
"pa_gain": 1,
"mix_gain": 8,
"rf_power": 3,
"dig_gain": 0
},
"tx_lut_4": {
"pa_gain": 1,
"mix_gain": 10,
"rf_power": 6,
"dig_gain": 0
},
"tx_lut_5": {
"pa_gain": 1,
"mix_gain": 12,
"rf_power": 10,
"dig_gain": 0
},
"tx_lut_6": {
"pa_gain": 1,
"mix_gain": 13,
"rf_power": 11,
"dig_gain": 0
},
"tx_lut_7": {
"pa_gain": 2,
"mix_gain": 9,
"rf_power": 12,
"dig_gain": 0
},
"tx_lut_8": {
"pa_gain": 1,
"mix_gain": 15,
"rf_power": 13,
"dig_gain": 0
},
"tx_lut_9": {
"pa_gain": 2,
"mix_gain": 10,
"rf_power": 14,
"dig_gain": 0
},
"tx_lut_10": {
"pa_gain": 2,
"mix_gain": 11,
"rf_power": 16,
"dig_gain": 0
},
"tx_lut_11": {
"pa_gain": 3,
"mix_gain": 9,
"rf_power": 20,
"dig_gain": 0
},
"tx_lut_12": {
"pa_gain": 3,
"mix_gain": 10,
"rf_power": 23,
"dig_gain": 0
},
"tx_lut_13": {
"pa_gain": 3,
"mix_gain": 11,
"rf_power": 25,
"dig_gain": 0
},
"tx_lut_14": {
"pa_gain": 3,
"mix_gain": 12,
"rf_power": 26,
"dig_gain": 0
},
"tx_lut_15": {
"pa_gain": 3,
"mix_gain": 14,
"rf_power": 27,
"dig_gain": 0
}
},
"gateway_conf": {
"gateway_ID": "00005813D398AC0D",
"server_address": "au1.cloud.thethings.network",
"serv_port_up": 1700,
"serv_port_down": 1700,
"servers": [
{
"gateway_ID": "00005813D398AC0D",
"server_address": "au1.cloud.thethings.network",
"serv_port_up": 1700,
"serv_port_down": 1700,
"serv_enabled": true
}
]
}
I am now not getting anything from the end device.?
This is what is now configured on the gateway Browan.
NFO: radio 0 enabled (type SX1257), center frequency 917200000, RSSI offset -166.000000, tx enabled 1, tx_notch_freq 129000
INFO: radio 1 enabled (type SX1257), center frequency 917200000, RSSI offset -166.000000, tx enabled 0, tx_notch_freq 0
INFO: Lora multi-SF channel 0> radio 0, IF -400000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 1> radio 0, IF -200000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 2> radio 0, IF 0 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 3> radio 0, IF 200000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 4> radio 1, IF -300000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 5> radio 1, IF -100000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 6> radio 1, IF 100000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora multi-SF channel 7> radio 1, IF 300000 Hz, 125 kHz bw, SF 7 to 12
INFO: Lora standard channel 8 disabled
INFO: FSK channel 8 disabled
INFO: /app/cfg/global_conf_0.json does contain a JSON object named gateway_conf, parsing gateway parameters
INFO: server hostname or IP address is configured to âau1.cloud.thethings.networkâ
INFO: upstream port is configured to â1700â
INFO: downstream port is configured to â1700â
INFO: downstream keep-alive interval is configured to 10 seconds
INFO: statistics display interval is configured to 30 seconds
INFO: upstream PUSH_DATA time-out is configured to 100 ms
INFO: packets received with a valid CRC will be forwarded
INFO: packets received with a CRC error will NOT be forwarded
INFO: packets received with no CRC will NOT be forwarded
INFO: GPS serial port path is configured to â/dev/ttyS3â
INFO: Reference latitude is configured to 0.000000 deg
INFO: Reference longitude is configured to 0.000000 deg
INFO: Reference altitude is configured to 0 meters
INFO: Beaconing period is configured to 128 seconds
INFO: Beaconing signal will be emitted at 923300000 Hz
INFO: Beaconing channel number is set to 8
INFO: Beaconing channel frequency step is set to 600000Hz
INFO: Beaconing datarate is set to SF12
INFO: Beaconing modulation bandwidth is set to 500000Hz
INFO: Beaconing TX power is set to 14dBm
INFO: Beaconing information descriptor is set to 0
INFO: [main] TTY port /dev/ttyS3 open for GPS synchronization
INFO: FPGA supported features: [TX filter] [Spectral Scan] [LBT]
INFO: [main] concentrator started, packet can now be received
Your radios should never use the same center frequency. Check the json you posted for the correct values.
Also, make sure to use a gateway frequency plan that matches your end device requirements. If you end device is AS923, set the gateway to AS923 as well and download the config after setting the plan.
Australia has a plan is
Australia 915-928 MHz, FSB 2 (used by TTN)
(Frequency Plans | The Things Stack for LoRaWAN)
Im in 923 mhtz range? Or doesnt it work like that?
Please edit your post and use the </> formatting tool for the logs - it helps the volunteers read faster so you get faster responses.
And
Are not compatible. They use the same frequency band and LoRaWAN but that is where the similarities end. If you want the details check regional parameters.
Specifically the downlink frequencies are different which might explain why your end device never received the reply from TTN. It is listening at a frequency the gateway isnât using for the transmission.
Australia runs (generally in TTN) with two FP options - one AU915 (FSB2) the other is AS923, some site installs therefore have/have to have two GWâs to facilitate the options if there are mixed device deployments in the area, though generally they tend to use one or the other at any given location. Either way as has repeatidly been stated now the GW & the Device FP has to matchâŚIf your device is âfixedâ to AS923 then that is what you have to enable on the GW otherwise they will be ships that pass in the night and wont see each other. Esp wrt the dl frq plan per Jac. You might also reach out to our friends at Meshed AU as Andrew (Maj) and Catherine and the team have long history of supporting this, also look to connect with your nearest community for guidance and support, but short answer is follow the advice you have been given aboveâŚ
Hi All,
I have now received payloads about 8 of them in a row. However, they stopped. The weird thing is that I really havenât done much other than turn Gateway on and off, maybe moved the gateway and device a few meters? but in saying this when I received the payloads till when I didnât nothing moved nor did I recycle power to the gateway.
Any Ideas?
This!
Hi Gents,
I had 15 solid payloads, and then I stopped receiving payloads. And now I have this constantly.
I believe its a gate way issue but not sure, the device using same credential was put on a different gate way and account and had no issues connecting straight away and didnât miss a beat. But on this gate way Iâm not sure whatâs going on? I have noticed the following thoughâŚ
Tx parameter setup request enqueued
New channel request enqueued
Link ADR request enqueued
MAC command answer missing

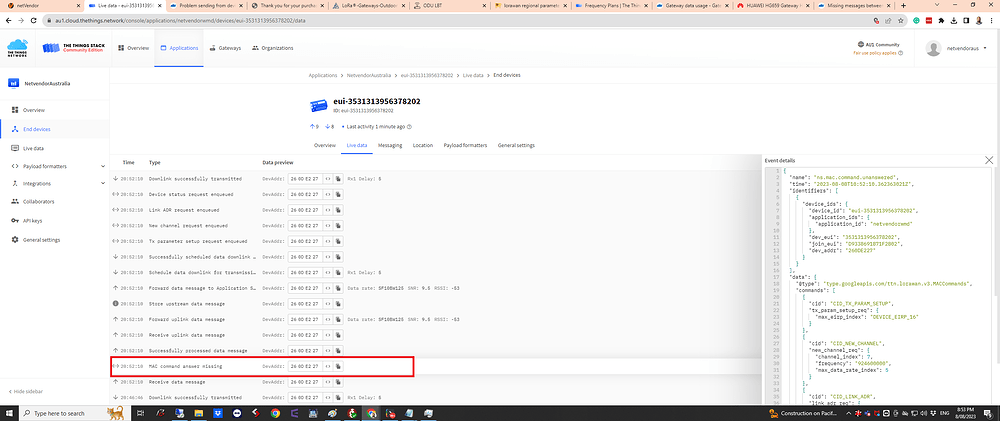

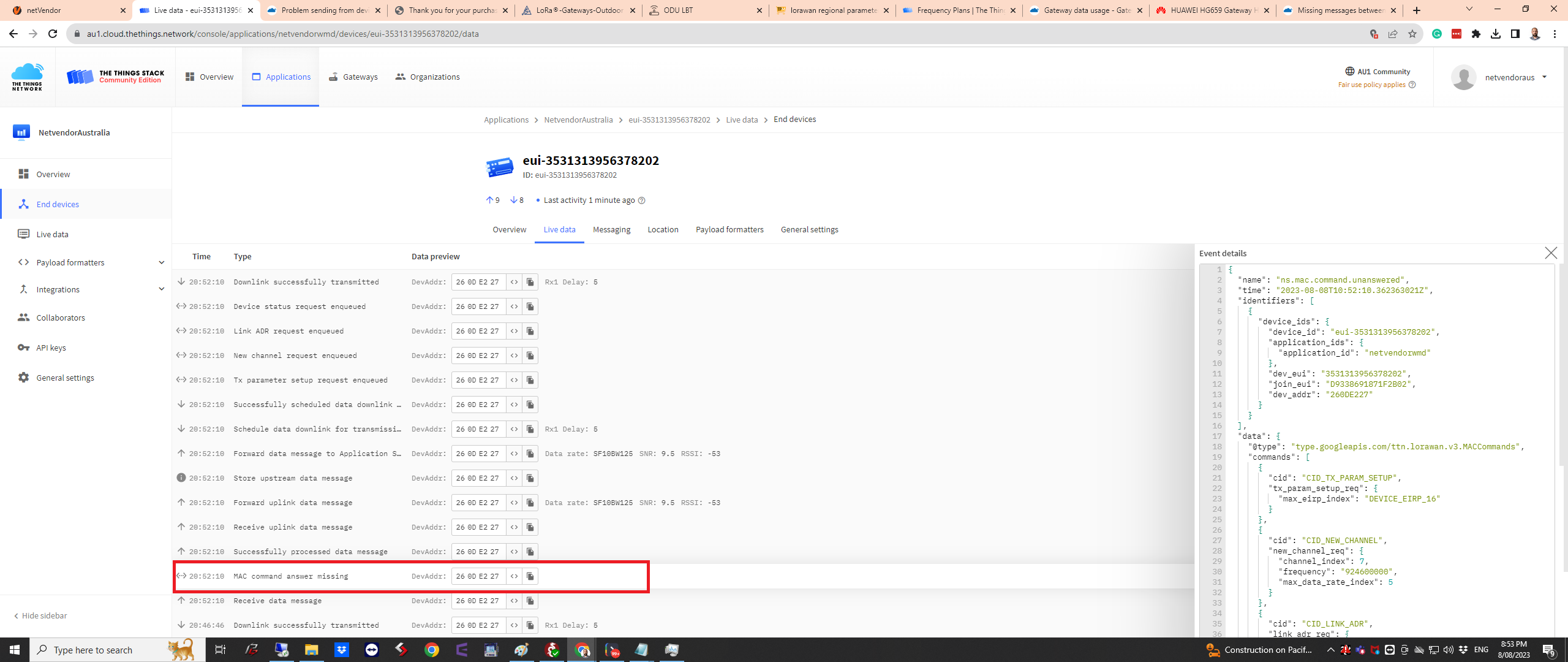

Here is the Jayson of it not working, hope this helps
[
{
