New gateway: The Things Indoor Gateway

Gateways TTIG - The Things Indoor Gateway
510

Are LoRaWan gateways really considered a Dual Use technology?

Was excited to order a Things Indoor Gateway from RS Online today for shipping to Norway but I received an email from RS Online where they wanted me to fill out a Dual Use End-User Undertaking (EUU) Form containing many fields and letters where I needed to first fax and then send the original to the UK before they could ship it.

Are LoRaWan gateways subject to export controls from the UK?

1 Like
511

maybe because of your nick ? :wink:

https://no.rs-online.com/web/c/semiconductors/semiconductor-development-kits/radio-frequency-development-kits/?applied-dimensions=4291547645

3 Likes
512

Arrived today, all working, two 'gateways (RAK831 and TIG) here both picking up same traffic and joins on SF9 etc - not done much more digging as it seems ok so far.

MFG date2018-12-11 09:10:14
FW Build2018-12-06 09:30:37
FW Version2.0.0
Core Version2.0.0(minihub/debug)

2 Likes
513

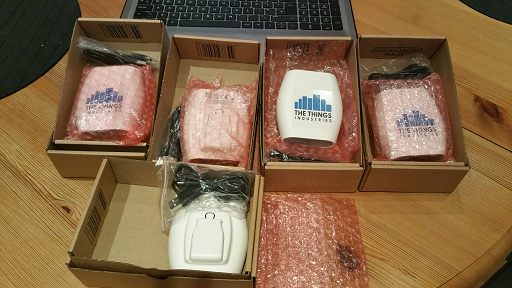

@wienkegiezeman 5 little beauties arrived this afternoon. :slight_smile:


A bit sparse as noted by others. No paperwork (forum has it all I guess) & no mains connector for use if the Tabs branded sleeve removed - and other similar mains adapter ‘shoes’ unlikely to fit given profile/shape. Were these missed out of package or are they supposed to be bought as an ‘accessory’?

Hope to get them all registered onto TTN & tested over the weekend (brings TTN GW count to 30 :slight_smile: ) even if not deployed to remote sites for a week or so… :wink:


Need to check if have enough usb Wall-Wart PSU’s to run concurrently otherwise it will be temp test with USB power banks till I can buy some PSU’s…from description/specification I had assumes they were plug & go wrt mains operation.

3 Likes
514

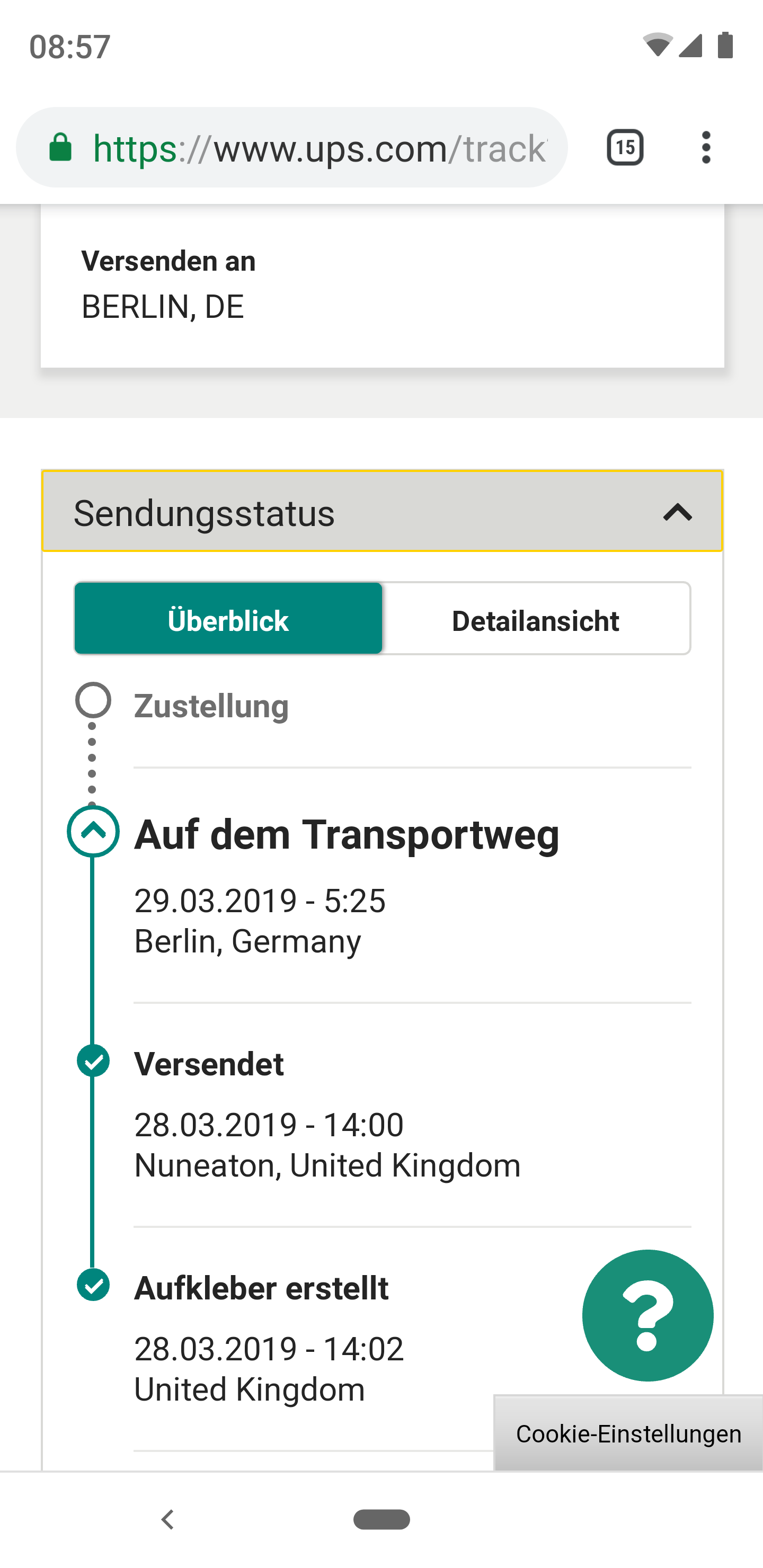

RS components made it, parcel crossed the channel over night.Screenshot_20190329-085800

515

Is there a source somewhere to buy a matching “shoe” plug?

516

Not that I have found but haven’t looked hard yet…I did check 5 or 6 PSU’s with similar fittings that I have in office and workbench (external HDD’s, other GW’s, Modem/Routers, phone chargers etc.) but none fit so far…will do a search online over weekend.

517

In Germany RS Components does not sell anything to private customers, only businesses. They cancelled my order unless I prove that I have a business (which I do) and refer private customers to a separate webshop, but TTIG is not offered there. Bottom line as a private customer you cannot buy it in Germany.

518

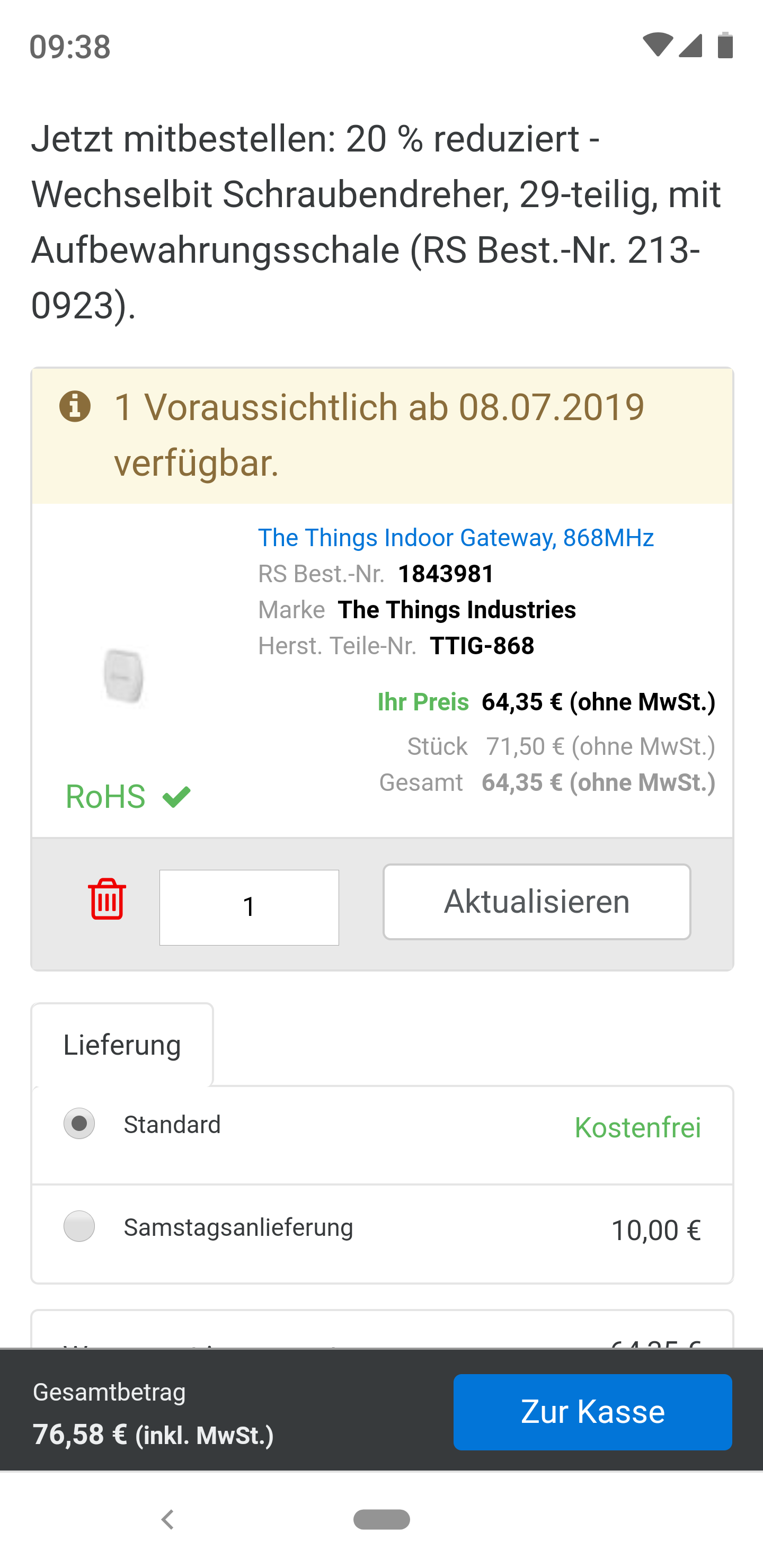

Stock seems already exhausted anyway…Screenshot_20190329-093803

2 Likes
519

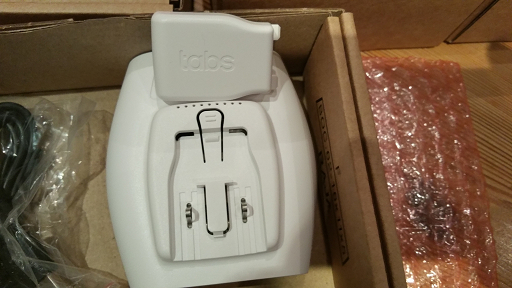

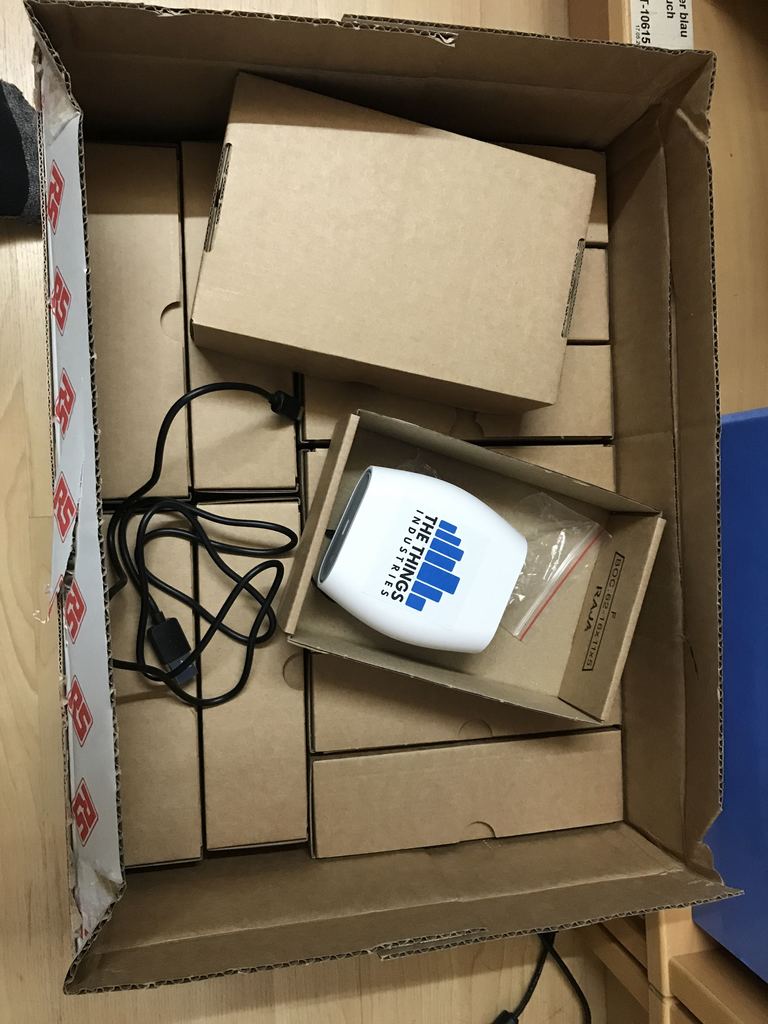

No paperwork, ok, no power plug either, hmmm

:slightly_frowning_face:

bild_von_ios_1024
bild_von_ios_1024768×1024 101 KB

4 Likes
521

Has anyone done any outdoor range tests on the gateway? :slight_smile:

1 Like
522

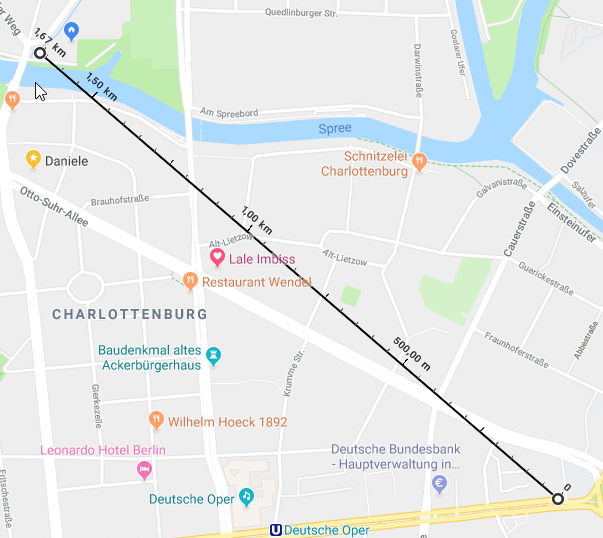

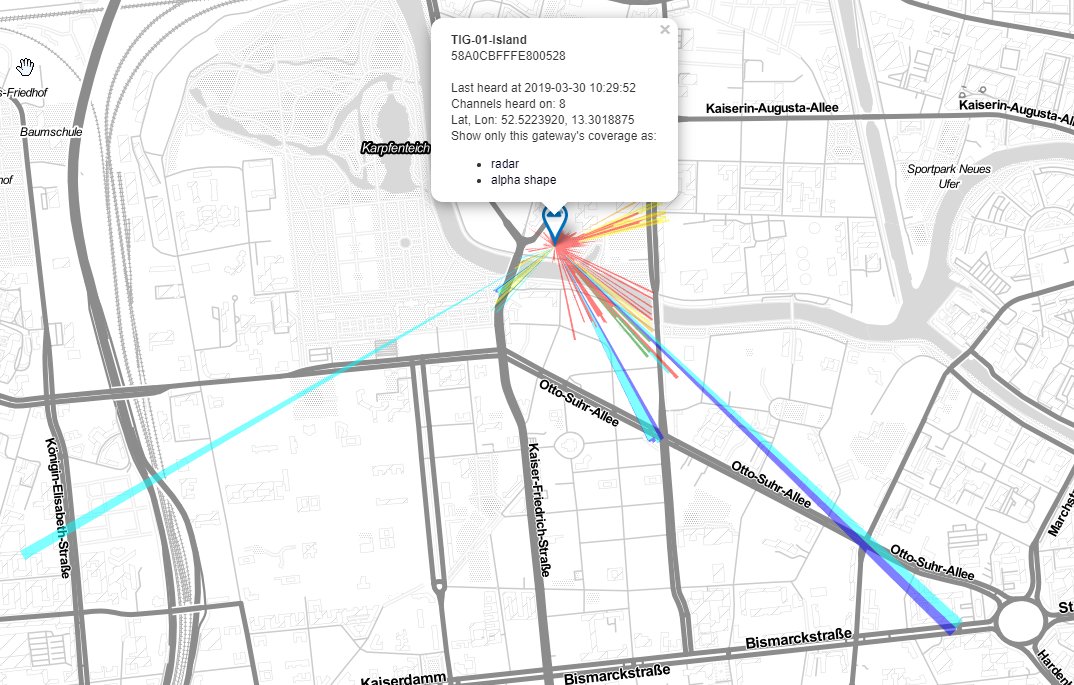

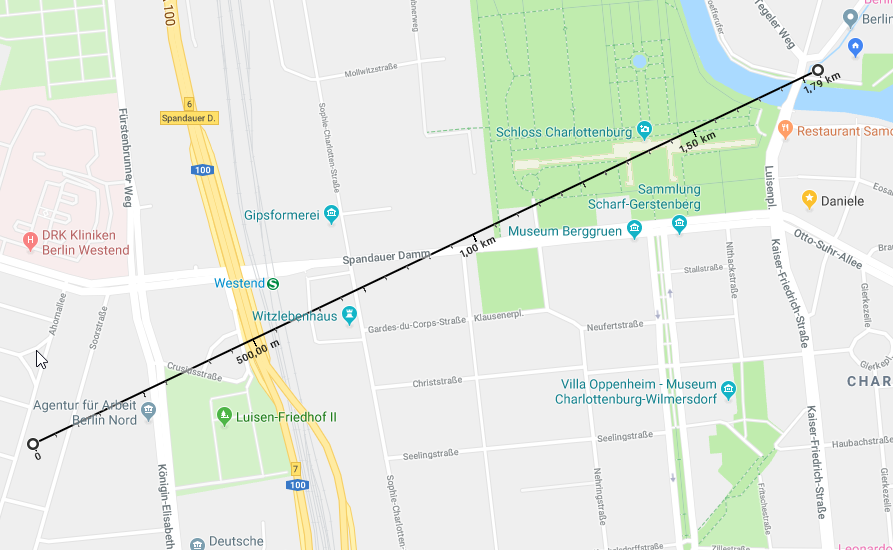

Yes. Up to 1,79 kilometers in urban Berlin. see pics attached. The technology of this indoor placed (1st floor) TTN gw is really excellent. But availability of gateway is not… so sad

167
179
total3

4 Likes
523

Awesome. Thanks.:slight_smile:

1 Like
524

nada…

525

Same story in Belgium (and quite some other EU countries)…
So no TTIG for me either :roll_eyes:

They are not the only ones BTW - same with E.g. Farnell…

1 Like
526

Indeed, as a private person I often bought parts from Farnell through MUXTRONICS.
A perfect NL ‘dropshipping’ next day service with no extra (shipping) costs and no minimum order.

To my surprise he stopped this service 19 Feb :cry: and the reason is ‘the Patriot act and security’, seems every E company MUST screen you before delivering goods direct to you.

So TTI has indeed a problem now distributing to the end user imho, hope some retailer will step in

527

1st TTIG now configured & online :slight_smile:
Quick process and no problems other than fact I was trying to connect to a little used WiFi-AP where I have now discovered WiFi is intermittent! :frowning: …wasting ~20-30 mins diagnosing. Will run this one for a few hours before trying the rest late tonight/tomorrow.

This unit will be relocated to sit close to a LairdRG186 , RAK831/RPi, iMST RPi & TTN Kickstarter GW (all internally located) tomorrow for some comparative distance tests over next week. Will report here what I find… :wink:

528

Do you see exact milliseconds timestamps in the metadata of nodes which were received by the TTIG?

529

Will look in detail tomorrow. Saw some of the thread comments wrt time stamp differences and not surprised as saw similar when comparing ttn Kickstarter GW with e.g. IMST lite GW & Laird RG running legacy fwdr… Many 10’s ms delta (pretty consistent)… Just put it down to differences in pkt fwdr and associates back end processing. In the case of TTIG expect same due to quick lash-up of Basic Station handler & middleman processing before launch…all cost time :wink:

531

Just took a quick peek at 3 GW’s inc TTIG - iMST, RAK-Pilot

I see
“gw_id”: “eui-b827ebfffec8bc53”,
“payload”: “QP0jASaAvgEF31mOluvdyS1D0y/CN/Xf”,
“f_cnt”: 446,
“lora”: {
“spreading_factor”: 7,
“bandwidth”: 125,
“air_time”: 61696000
},
“coding_rate”: “4/5”,
“timestamp”: “2019-03-31T18:48:54.794Z”

and

“gw_id”: “eui-b827ebfffe5161b8”,
“payload”: “QP0jASaAvgEF31mOluvdyS1D0y/CN/Xf”,
“f_cnt”: 446,
“lora”: {
“spreading_factor”: 7,
“bandwidth”: 125,
“air_time”: 61696000
},
“coding_rate”: “4/5”,
“timestamp”: “2019-03-31T18:48:54.802Z”

and

“gw_id”: “eui-58a0cbfffe800609”,
“payload”: “QP0jASaAvgEF31mOluvdyS1D0y/CN/Xf”,
“f_cnt”: 446,
“lora”: {
“spreading_factor”: 7,
“bandwidth”: 125,
“air_time”: 61696000
},
“coding_rate”: “4/5”,
“timestamp”: “2019-03-31T18:48:54.825Z”

The latter with the the fractionally later timestamp is the TTIG :slight_smile:

1st is iMST, 2nd is RAK, all are approx 15-40m from the test node so ToF not a significant factor…

This is consistent with what I have seen previously - will look in more detaiuls and compare with a TTN Kickstarter also tomorrow, but I recall seeing a 25-35ms delta when I looked at differences early last year.
