3D Printing thread has been quiet for a couple of weeks… :wink:

a prompt also posted in Library 5 thread -

Mapgi Iss # 69 big on 3D Printing this month

1 Like
128
1 Like
129

1 Like
130

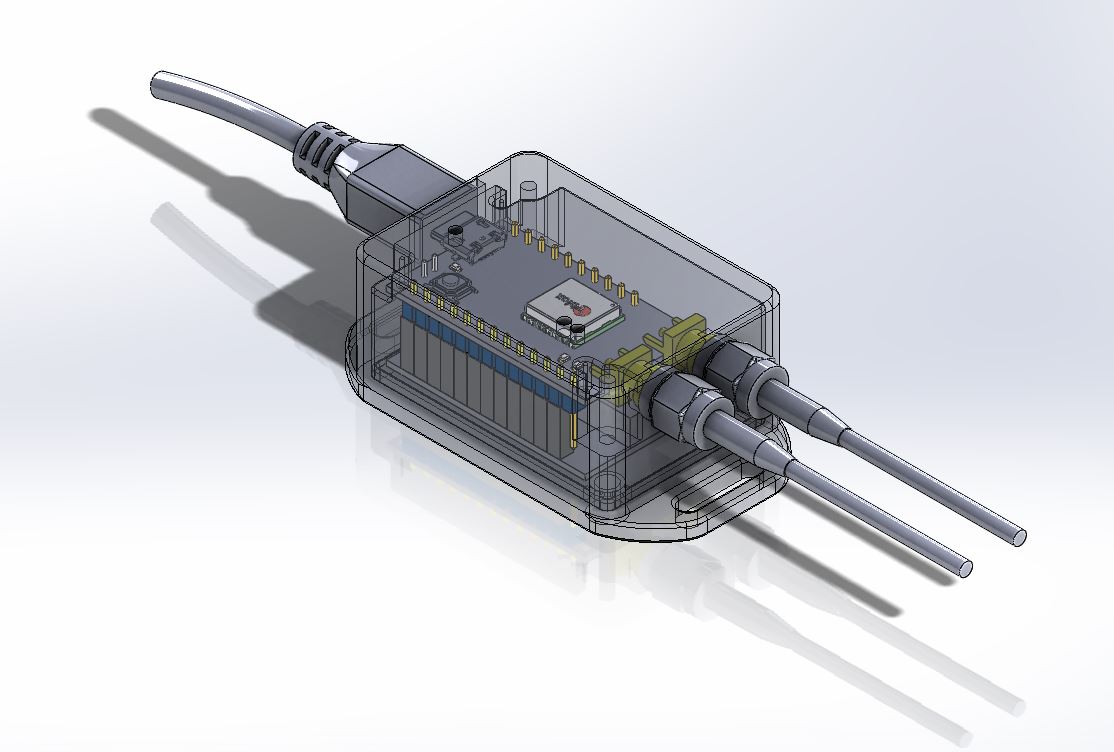

3D Model for RAK811 Sensor & or Tracker board - one allowing for small LiPo the other with extra height allowing for LiPo + space for extra small custom pcb

http://e.pavlin.si/2018/05/14/rak811-3d-model-and-plastic-housing/

haven’t built yet as waiting for replacement printer…so maybe by next weekend! :slight_smile:
Page links to github where .stl files as well as the formats (x_b & IGS) held on GrabCad

1 Like
131

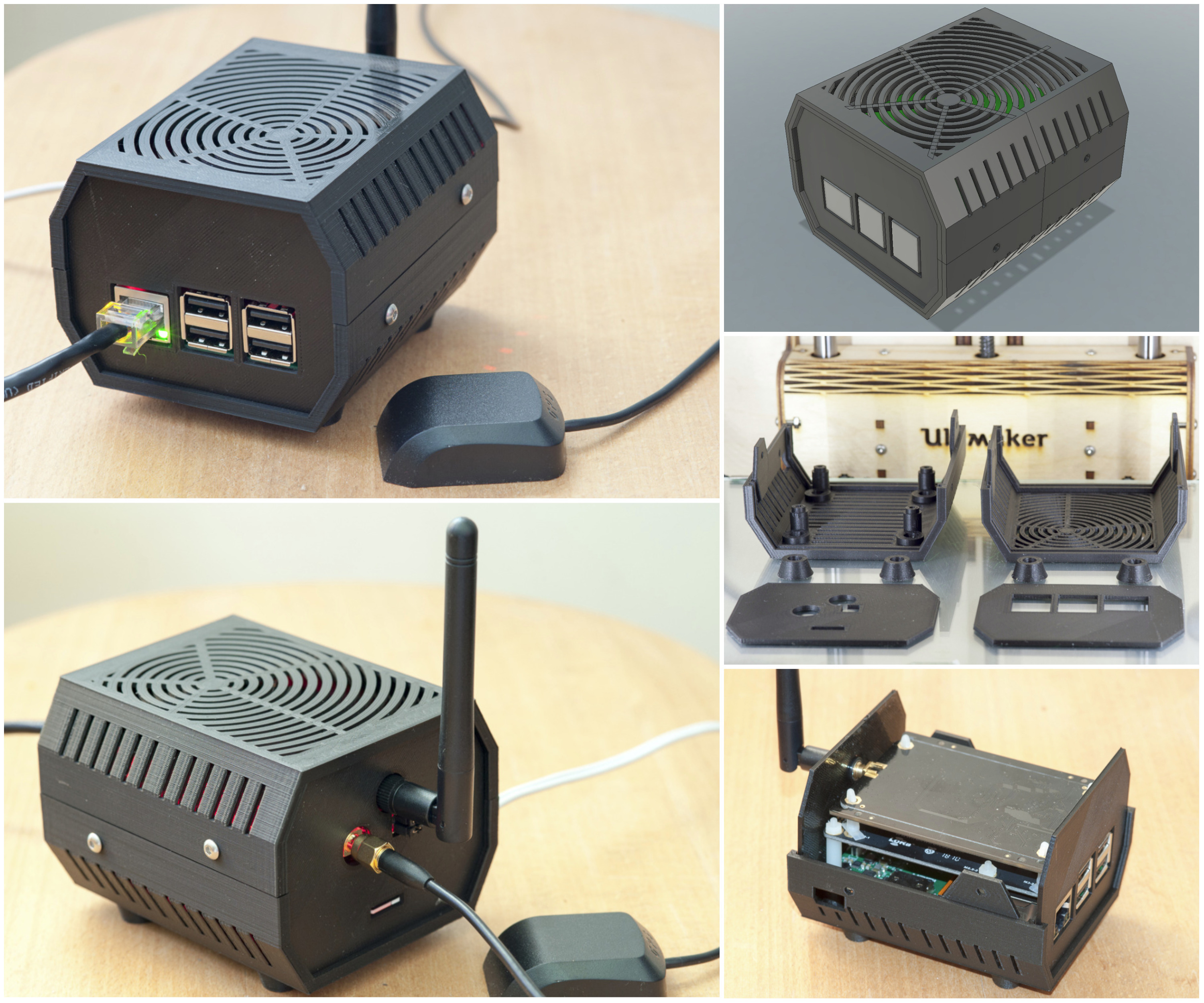

Yet another enclosure!

RPi + RAK831 (with RAK GPS backplane)

TTNRak831-Collage

I didn’t make it too small and made enough cuts in the enclosure to allow air circulation. No additional heat sink should be needed.

Available on Thingiverse…

5 Likes
132

wow… getting really pro ! :sunglasses:

1 Like
133

…very nice well done Amedee!

1 Like
134

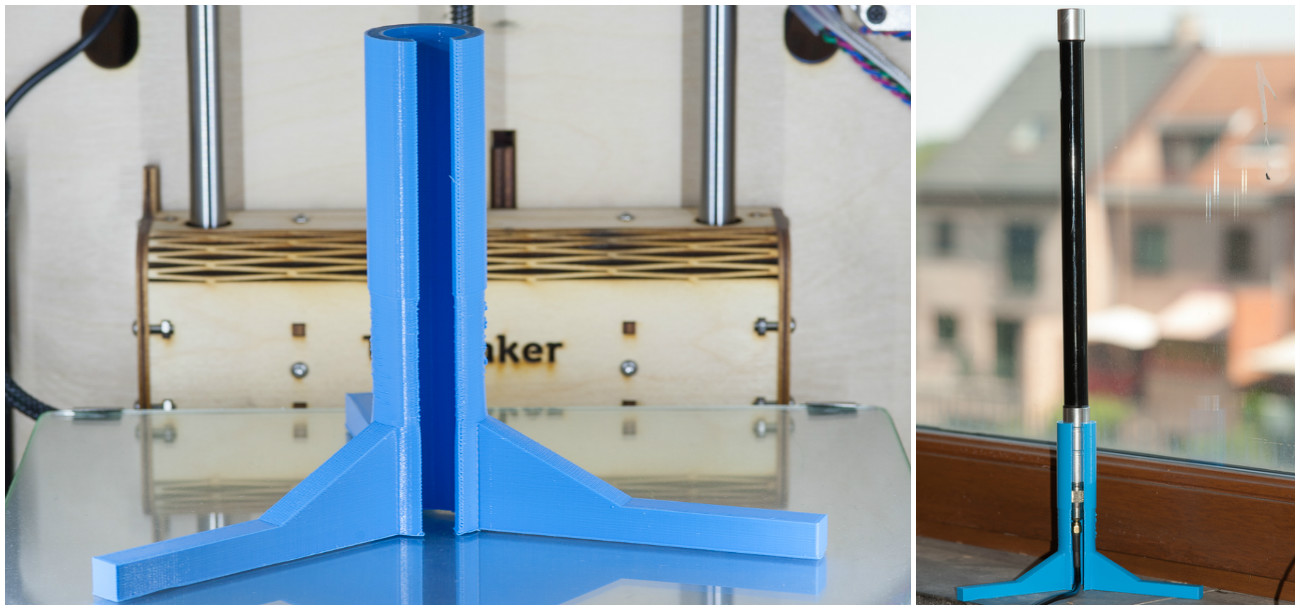

A quick one: needed something to hold my RAK antenna…

RakAntenna

3 Likes
135

OOo this looks good. Going up on thingiverse? @Amedee

136

8 posts were merged into an existing topic: The BIG and SMALL ANTENNA topic part 2

138

Sure!
I’ll post when back home early next week.

2 Likes
139
140

Eventually :wink:

https://www.thingiverse.com/thing:3044207

2 Likes
141

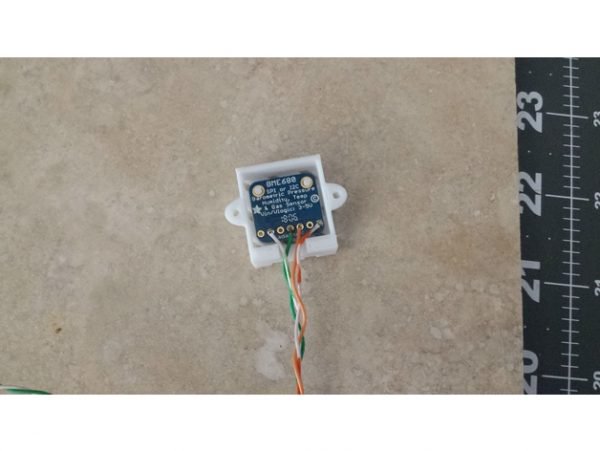

BME680 Sensor Mount

142

Very Nice ! - Thanks for sharing Amedee

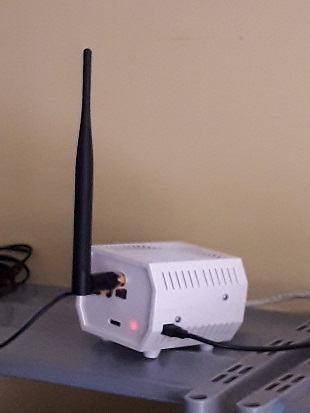

case_rak831

1 Like
143

Glad you like it!

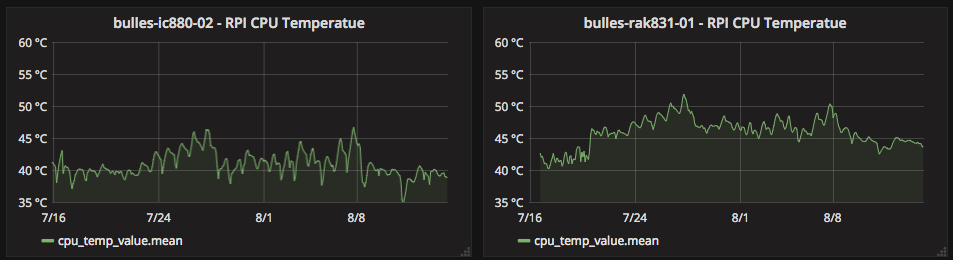

Thermal dissipation is OK as well: during the recent heat wave, I had 35°C+ in the room and the RPi processor temp went barely above 50°C.

It is only 5°C more than an RPi Zero on my “lab” which is in “open air”

08

144

This is what i am looking for. Very nice housing. According to RAK811 tracker module, this module need 18650 Li-ion battery, and the internal charger circuit was design for this battery to recharge the battery.
One more thing about this module, the GPS antenna is using external antenna. For simple use I prefer using ceramic GPS. I think we can solder parallel with existing GPS terminal.
Its more beautiful if the housing has space for this battery and ceramic GPS too.

Thanks

145

I’m testing the Rocket Scream Mini Ultra LoRaWAN device to see how power draw works outdoors through a Michigan winter. For this I needed an outdoor enclosure and set about designing something suitable.

As I’m hoping to keep the elements out I’ve developed a 3-part enclosure. The front/back pieces should be printed in something generally water-resistant (I used PETG), and there is a gasket sandwiched between the two printed using a flexible filament like TPU. 4 x 20mm M2 bolts draw the two PETG parts together to compress the TPU gasket.

I have no idea if this will work but we’re about to find out :smiley:

Enclosure: https://github.com/rocketscream/MiniUltraLoRaWAN/tree/master/Enclosure

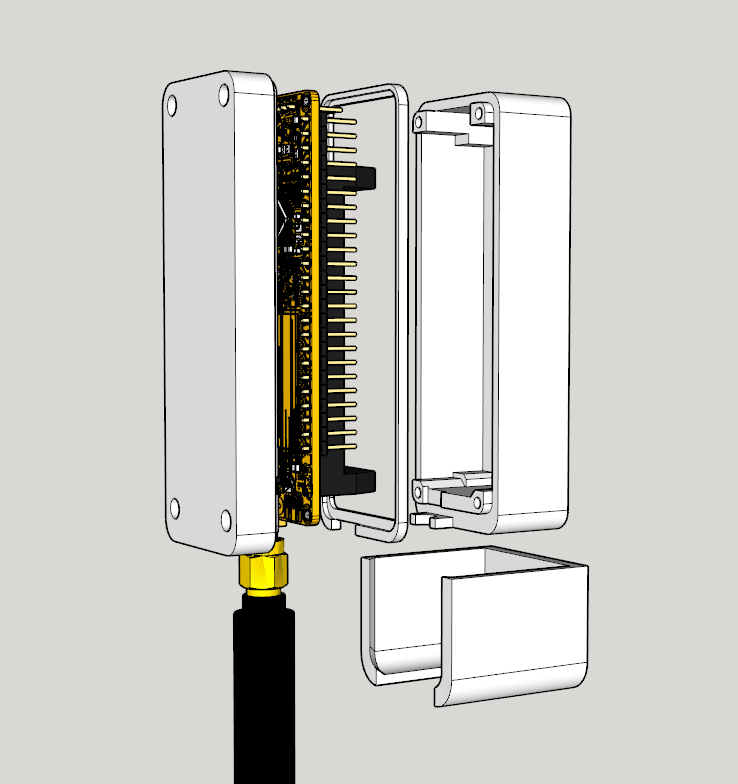

Explosion:

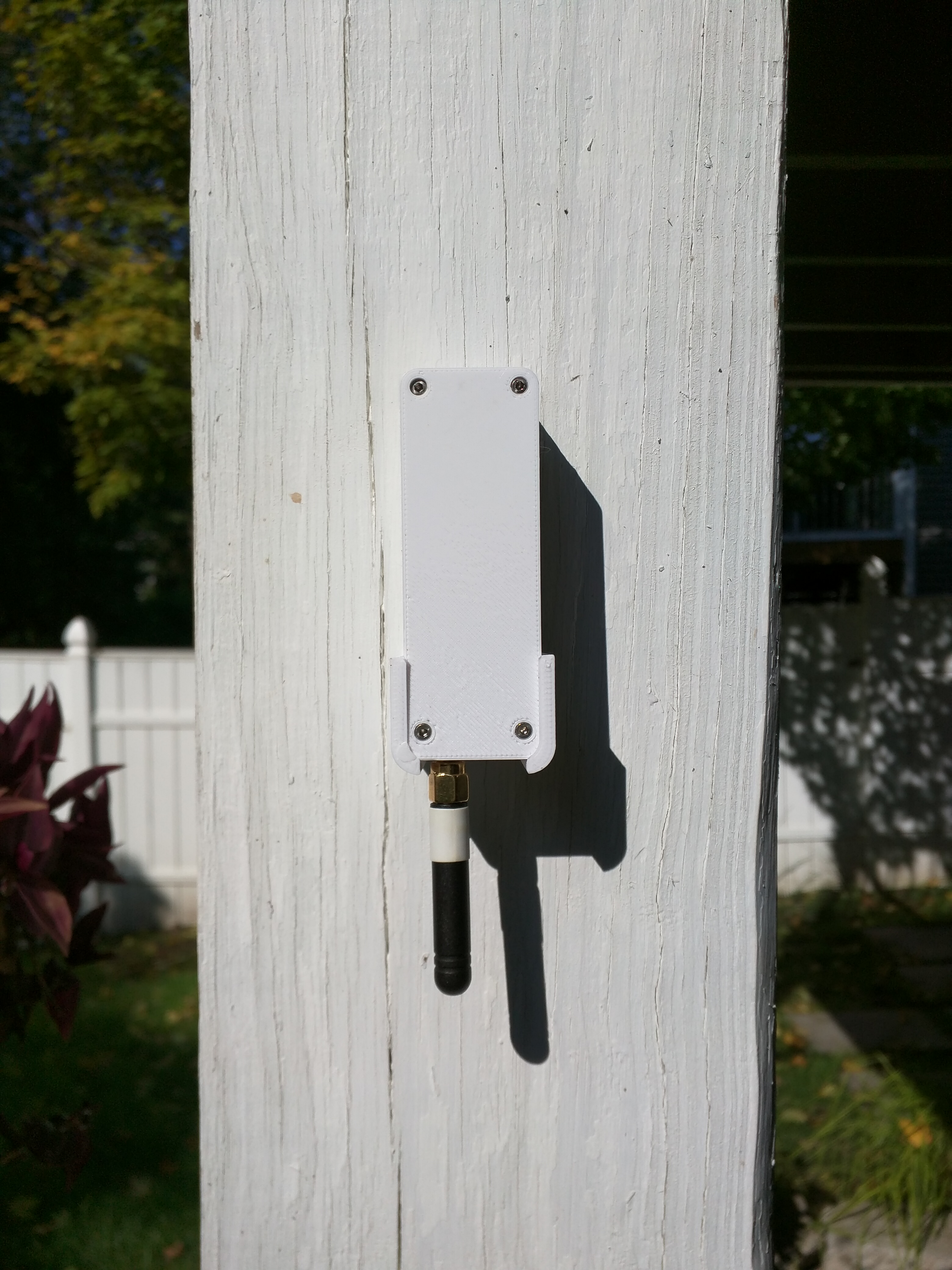

Mounted:

6 Likes
146

Nice.

Your screw holes are inside the gasket perimeter, so I guess that will be the weak point…

1 Like
148

Sadly… yup. In order to keep the overall size down I’ve run the 4 screws through the PCB which makes gasketing them difficult. The screws and nuts are both recessed, and I hope that pulling them tight enough against the PETG will help keep water out. The worse problem is the antenna egress, which similarly isn’t very well gasketed, and which is why I have it facing downwards.

This solution is hoping to provide some weather proofing, but if anyone was looking for underwater LoRaWAN this probably isn’t going to help :smiley:
