Configuring Your Gateway

Assuming you have successfully logged into your LoRa Gateway using SSH. Enter the following command in the command line:

sudo gateway-config

You will now then see a page like the following picture below

Figure 1: Configuration Options for the Gateway

  1. Set pi password - used to set/change the password of the LoRaWAN® Gateway.
  2. Set up RAK Gateway LoRa® Concentrator - used to configure the frequency, which the LoRaWAN® Gateway will operate on, and the LoRaWAN® Server which the LoRaWAN® Gateway will work with.
  3. Restart packet-forwarder - used to restart the LoRa® packet forwarded process.
  4. Edit packet-forwarder config- used to open the global_conf.json file, in order to edit LoRaWAN® parameters manually.
  5. Configure Wifi - used to configure the Wi-Fi settings in order to connect to a network.
  6. Configure LAN - used to configure the Ethernet adapter settings.

Note: A unique ID will be generated in for LoRaWAN® Gateway. This is also called Gateway EUI squared in red in the figure above and is essential for registering the gateway with any LoRa® Network Server (TTN, ChirpStack)

There is also another way to get your “Gateway ID”, just enter the command below in the command line:

sudo gateway-version

Figure 2: Gateway ID using the command line

Set a new password for the LoRa Gateway #

It is a good security practice to change the default password “raspberry” which is the same on all Raspberry Pi devices.

  • First, choose “1 Set pi password” option referred on the image below.

Figure 3: Set Pi Password

  • Next, press “Yes” and you will be asked to enter your new password twice then press “Enter”.

Figure 4: Confirm Password Change

  • Alright, the success message for changing password will then pop up.

Figure 5: Successful Password Change

Set up RAK Gateway LoRa® Concentrator #

This menu allows you to select your LoRa® frequency band and one of the two available Networks Server options by choosing “2 Setup RAK Gateway LoRa® concentrator”

Figure 6: Choosing Setup RAK Gateway LoRa® concentrator

You can choose one of two supported LoRa® Servers here: TTN or ChirpStack.

Server is TTN #

Figure 7: Server Is TTN

  • TTN (The Things Network). If you choose TTN as the LoRa® Server, you will see the following page. Visit this article for more information on your local TTN frequency plan. This will allow you to choose the correct plan.

Figure 8: Selecting the TTN Channel Plan

After choosing the correct frequency, the success message will appear as shown below.

Figure 9: Successfully Changed the Frequency

Connect the LoRaWAN® Gateway to a Router #

If you want to use TTN or an independent LoRaServer which may be deployed in Local area network or Internet, you need to connect your LoRaWAN® Gateway to a router first.

Connect through Wi-Fi #

If you want to connect through Wi-Fi, it can easily be done with the Wireless capabilities of the Raspberry Pi 3B+ or Raspberry Pi 4.

Figure 14: Configuration options for WiFi

There are 5 options to choose from in the Wi-Fi configuration menu:

  1. Enable AP Mode/Disable Client Mode - the LoRaWAN® Gateway will work in Wi-Fi Access Point Mode after rebooting while the Wi-Fi Client Mode will be disabled (this is the default mode).
  2. Enable Client Mode/Disable AP Mode - the LoRaWAN® Gateway will work in Wi-Fi Client mode after rebooting, while Wi-FI AP Mode will be disabled.
  3. Modify SSID and pwd for AP Mode - used to modify the SSID and password of the Wi-Fi AP. Only works if the Wi-Fi AP Mode is enabled.
  4. Add New SSID for Client - this is used if you want to connect to a new Wi-Fi Network. Only works in Wi-Fi Client mode.
  5. Change Wi-Fi Country - this is used to modify the Resident Country to match with Wi-Fi standards.

Note: In order to enable Wi-Fi client mode, you need to disable first the AP Mode.

Once Wi-Fi AP Mode has been disabled by choosing Item 2, you can now then connect to a new Wi-Fi Network by choosing Item 4:

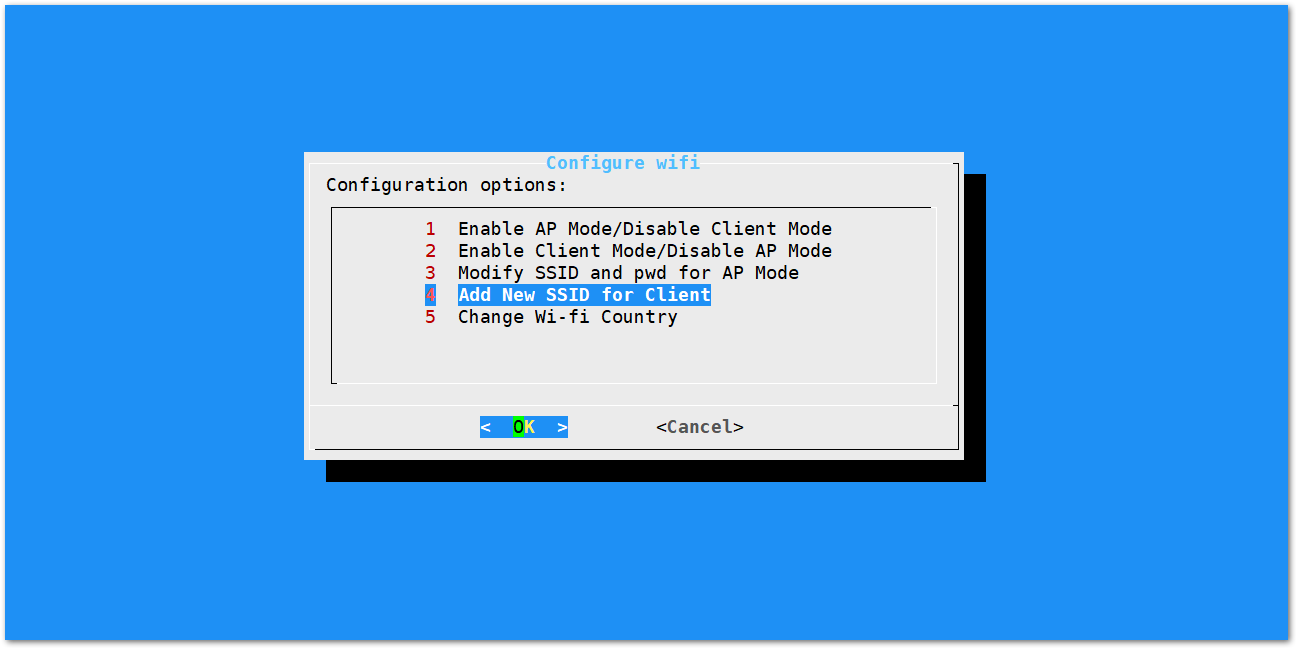

Figure 15: Add a new SSID

  • Start by Selecting your Country of residence Figure 16: Selecting Country of Residence

  • Enter the SSID of the network you want to connect: Figure 17: SSID of the Network you want to connect to.

  • Enter also the password. Just leave it empty if None. Figure 18: Password of the Wi-Fi

Please ensure to input the correct Wi-Fi SSID and password or you will not be able to connect to the RAK7244C again via SSH in Wi-Fi AP Mode. If stuck in this situation, please follow the procedure list here

Connect through Ethernet #

If you want to connect to router through Ethernet Cable, do the following steps:

  • In the main configuration menu, choose “6 Configure LAN”. This will let you set up a static IP address for the Gateway’s Ethernet adapter.

  • Just fill a static IP Address according to the IP address of the router you want to connect. Please note that the LoRaWAN® gateway and the router must be in the same network segment, otherwise the connection will fail.

  • By default, the IP Address of the LoRaWAN® Gateway’s Ethernet is 192.168.10.10 Figure 19: Default LoRaWAN® Gateway Ethernet IP Address

  • Then configure the IP address of the Router. This is the LAN Interface IP address of the router: Figure 20: LAN Interface IP Address of the Router

  • Press OK then the success message will appear.

  • Lastly, reboot the LoRaWAN® Gateway using the command sudo reboot in the command line and it will connect to the router successfully through Ethernet.
