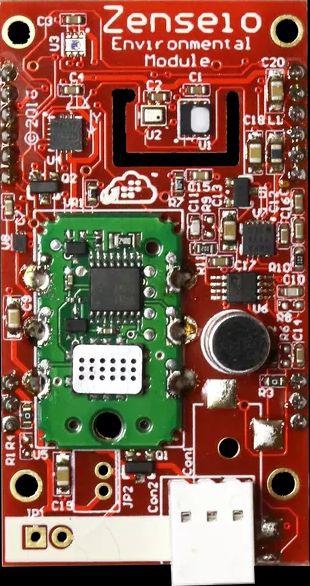

This multi-sensor module monitors important conditions in the environment: temperature, relative humidity, barometric pressure, movement/vibration, light levels, ambient audio noise, and air quality (CO2 gas and tVOC). Note, this version adds additional sensors for CO2 and tVOC over Environmental 2 Module.
Features
8 environmental sensors: temperature, relative humidity, barometric pressure, 3D accelerometer, luminance meter, ambient audio noise meter, CO2 gas, and tVOC
Interrupt triggering based on predefined movement or luminance levels
Configurable sensitivity for movement sensor, allowing different types of detection: vibration, shake, fall/impact, general movement, orientation detection
Configurable sensitivity for ambient audio volume levels
Audio noise monitor can be powered off for smallest sleep power
Air Quality sensors can be powered off for smallest sleep power
Programmable speed control and solder connections for an 3.3V external small airflow fan
Block Connector for attaching an external sensor or actuator
Size (LxWxH): 2.2″ x 1.2″ x 0.6″ (55mm x 30mm x 15mm)
Weight: 20 gram
Requires Sensor Hub to be useful
